UL3139 Alte Flexibile Silicone Pugna High Temperature Resistant Connectens filum
Home / Productum / Filum insulatum / Silicone Purgamentum filum / UL3139 Alte Flexibile Silicone Pugna High Temperature Resistant Connectens filum
  • UL3139 Alte Flexibile Silicone Pugna High Temperature Resistant Connectens filum
  • UL3139 Alte Flexibile Silicone Pugna High Temperature Resistant Connectens filum
  • UL3139 Alte Flexibile Silicone Pugna High Temperature Resistant Connectens filum
  • UL3139 Alte Flexibile Silicone Pugna High Temperature Resistant Connectens filum
  • UL3139 Alte Flexibile Silicone Pugna High Temperature Resistant Connectens filum
  • UL3139 Alte Flexibile Silicone Pugna High Temperature Resistant Connectens filum
  • UL3139 Alte Flexibile Silicone Pugna High Temperature Resistant Connectens filum
  • UL3139 Alte Flexibile Silicone Pugna High Temperature Resistant Connectens filum
  • UL3139 Alte Flexibile Silicone Pugna High Temperature Resistant Connectens filum
  • UL3139 Alte Flexibile Silicone Pugna High Temperature Resistant Connectens filum

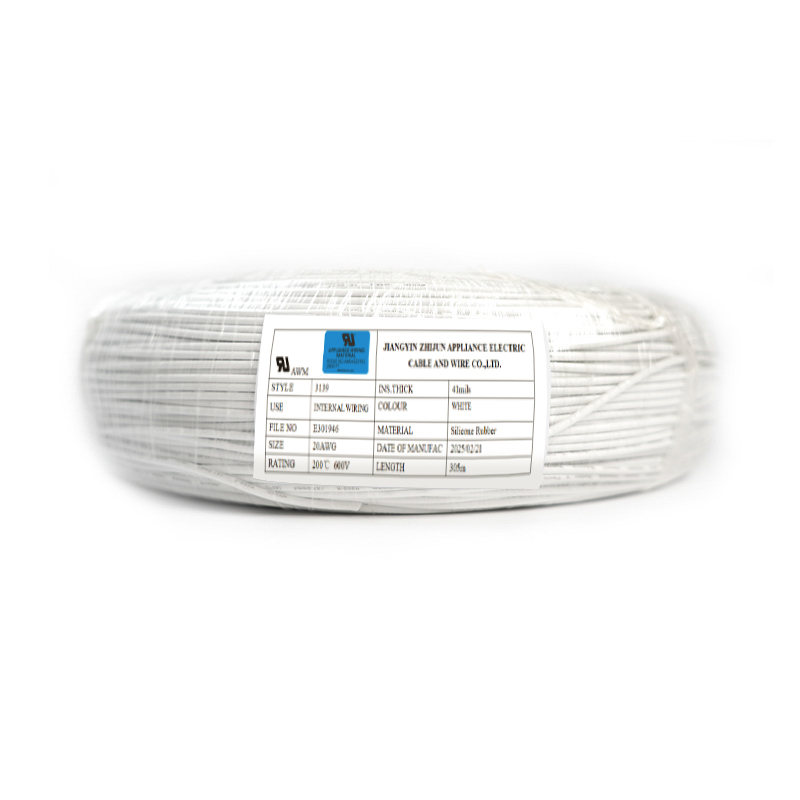

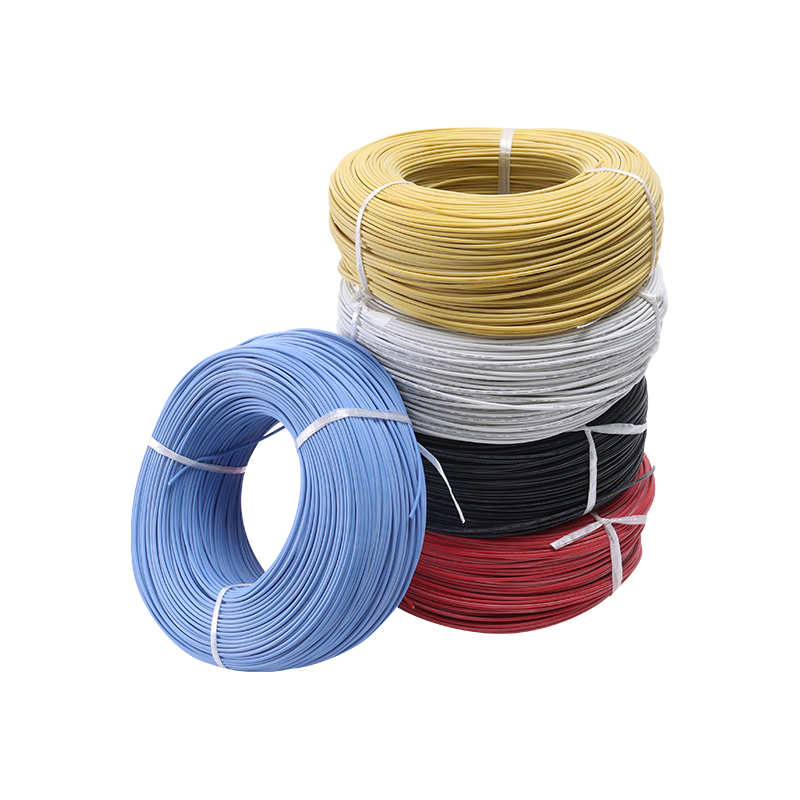

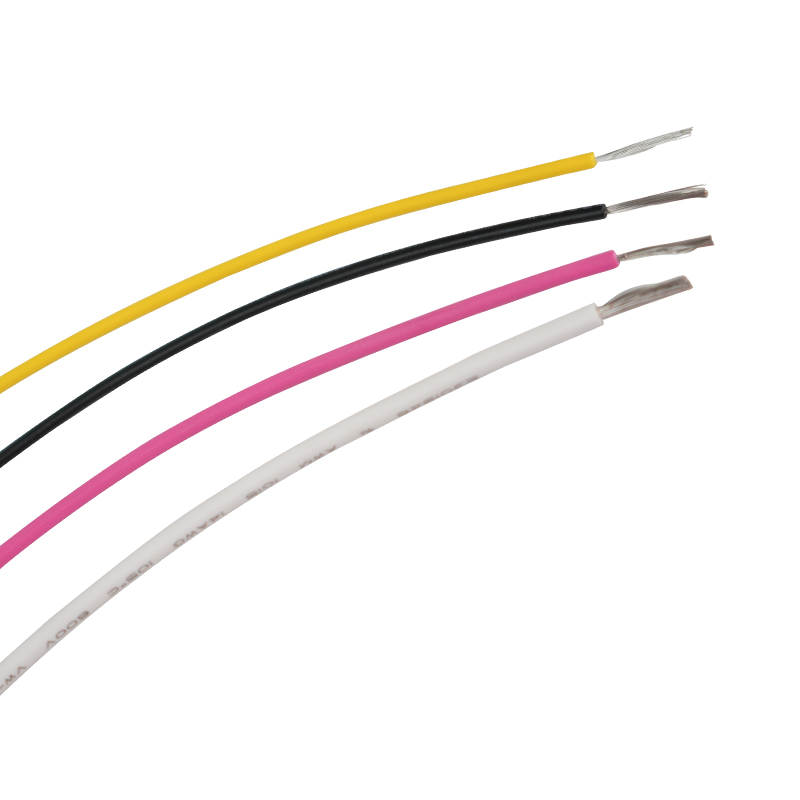

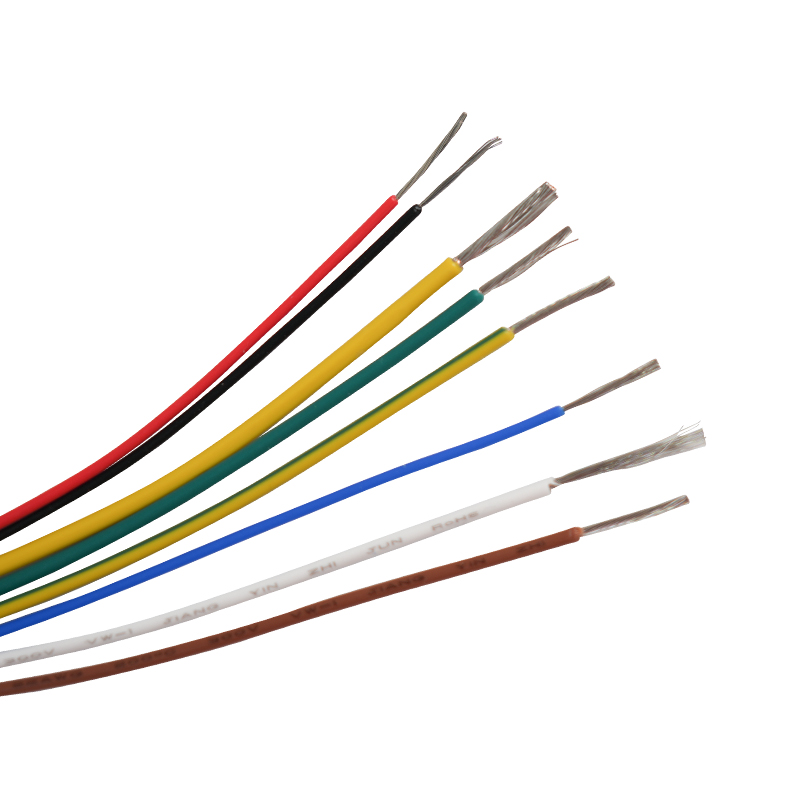

UL3139 Alte Flexibile Silicone Pugna High Temperature Resistant Connectens filum

UL3139 vexillum certificatione: UL758, numerus certificationis: E301946 Rated voltage: 600V, apta ad apparatum electrica low-voltage. Potest enim sustinere quandam intentionem concussionem. Habet bona flamma possessiones retardant et obtemperat cum signis UL et Rohs praescriptionibus. Conductor factus est ex aere nudo vel stylo tincto, et potest esse una linea vel multi- litum contortum. Multi- litum contorta mollior est et apta applicationibus frequentem flexionem requirentibus. Stratum insularium est Flexilis silicone, quae continuam temperaturam operariorum CC°C sustinere solet. Variis coloribus et notis perspicuis. Apta industrialibus, medicis, accensis et aliis locis, specificationibus conductoris: 0.5mm²~240mm², 26awg~12awg

Contact Us
PREV：UL3239 American Standard High Voltage Silicone Wire And Cable 10kv16/18/20awgDEINDE：UL3512 UL Certified 10mm
Parameter
AWG
NO. 		Spec.
mm²） 		Conductor Insulation Diameter filum Max
resistentia
20℃(Ω/KM)
Structure
mm） 		Diameter
mm） 		Nominal
crassitudine
mm） 		Min
crassitudine
mm） 		Nominal
mm） 		tolerantia
mm）
26 0.128 7/0.16 0.48 1.14 1.03 2.8 ±0.15 148
8/0.15
25 0.162 9/0.16 0.56 1.14 1.03 2.85 ±0.15 116
24 0.205 7/0.20 0.6 1.14 1.03 2.9 ±0.20 93
11/0.16
23 0.259 11/0.18 0.7 1.14 1.03 3 ±0.20 74.5
22 0.324 7/0.254 0.75 1.14 1.03 3.05 ±0.20 55
13/0.18
21 0.412 17/0.18 0.88 1.14 1.03 3.2 ±0.20 46.9
20 0.519 21/0.18 0.96 1.14 1.03 3.25 ±0.20 34.6
10/0.254
7/0.32
19 0.653 26/0.18 1.1 1.14 1.03 3.4 ±0.20 29.1
18 0.823 33/0.18 1.2 1.14 1.03 3.5 ±0.30 23.2
7/0.39
16/0.254
17 1.04 21/0.254 1.38 1.14 1.03 3.7 ±0.30 20
40/0.18
32/0.20
16 1.31 7/0.49 1.55 1.14 1.03 3.85 ±0.30 14.6
26/0.254
52/0.18
15 1.65 33/0.254 1.75 1.14 1.03 4.05 ±0.30 11.3
14 2.08 41/0.254 1.95 1.14 1.03 4.25 ±0.30 8.96
7/0.62
64/0.20
13 2.63 51/0.254 2.15 1.14 1.03 4.45 ±0.30 7.1
12 3.31 65/0.254 2.5 1.14 1.03 4.8 ±0.30 5.64
42/0.32
Quaeso contactus elit ut providere productum determinationes.
