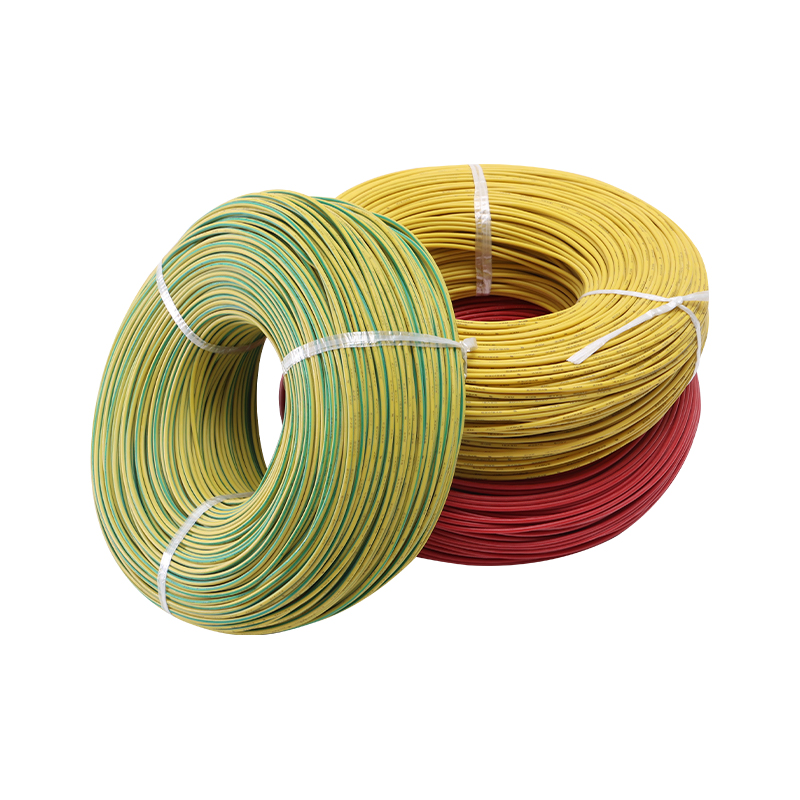

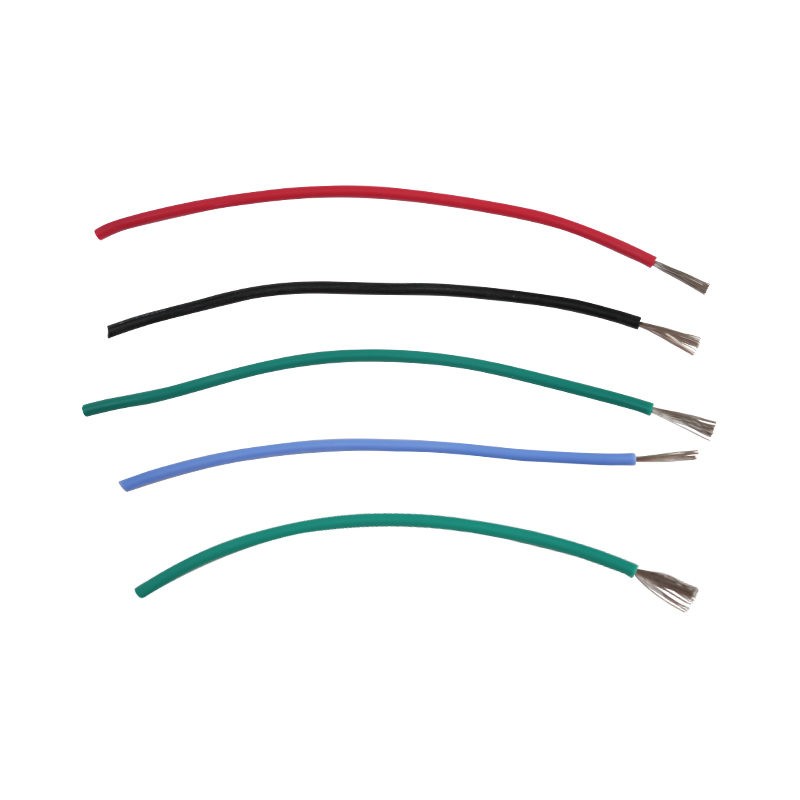

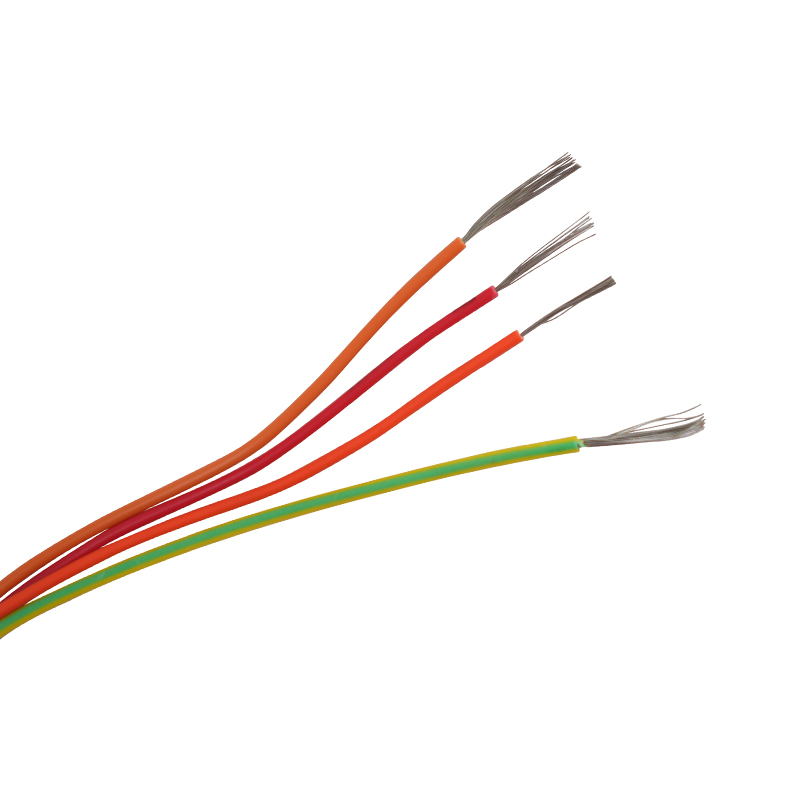

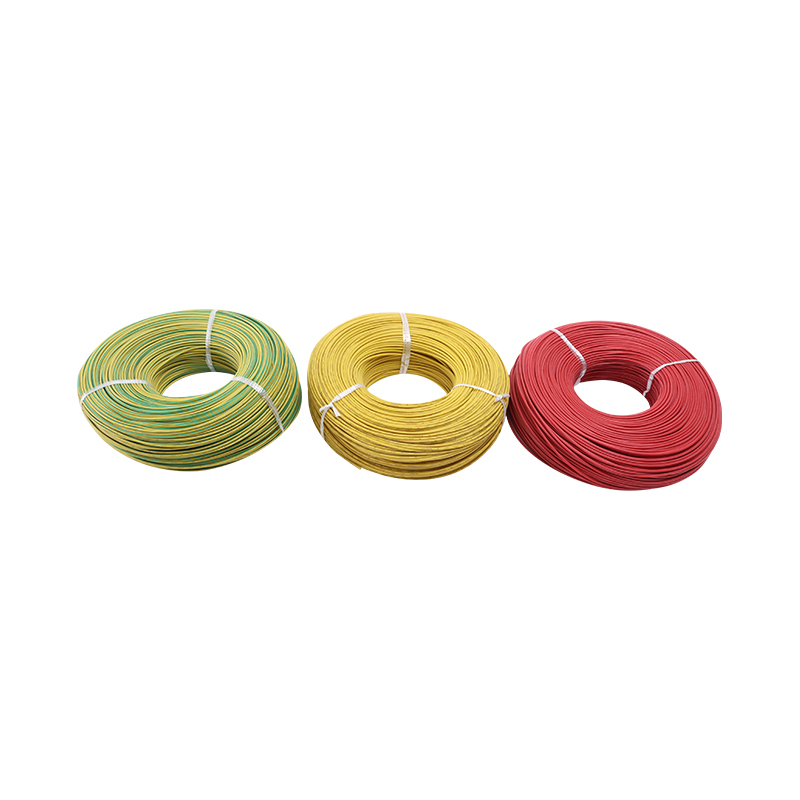

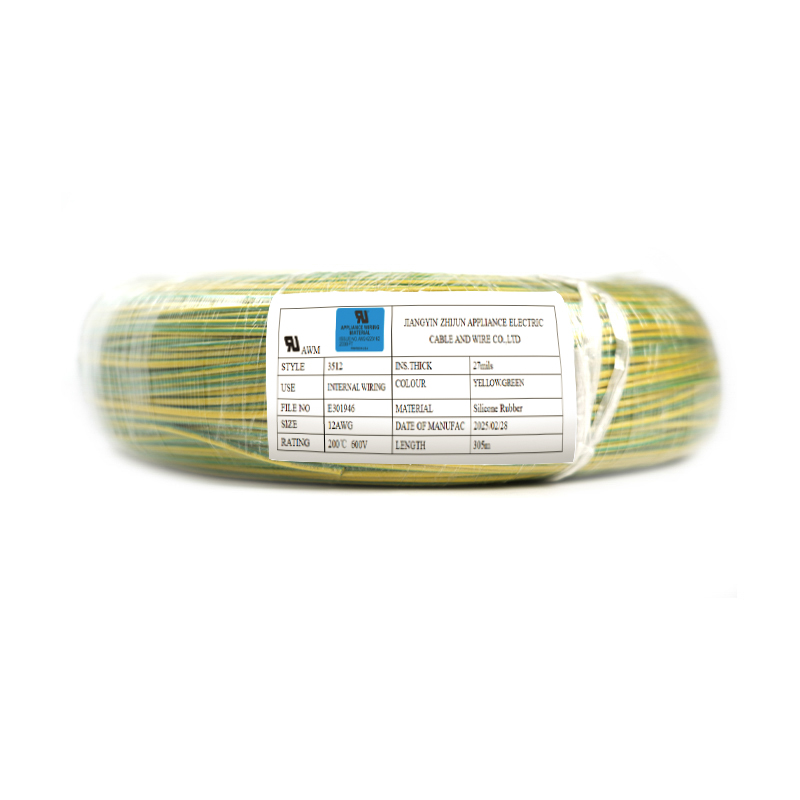

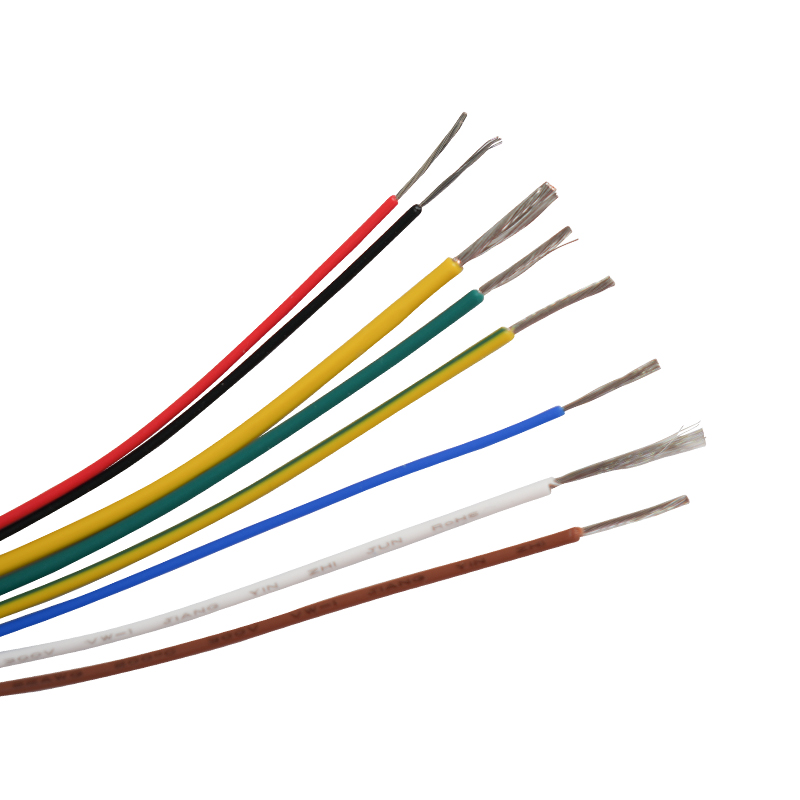

UL3512 UL Certified 10mm

UL3512 vexillum certificationis: UL758, numerus certificationis: E301946 Rated intentione: 600V, temperatura aestimata: -60°C~ 200°C, conductores fiunt ex aere nudo, stylo, argenteo vel nickel-patella aeneo, et iacuit velit silicone rubber. Insulatio electrica perficiendi bona habet et variis electricis internis wiring apta est. In electricis instrumentis, instrumentis domesticis, instrumentis industrialibus, accensis instrumentis, electricis calefactionis adhibitis et aliis campis in ambitus caliditatis caliditatis usus est. Specifications: 0.5mm²~ 240mm²

Contact Us
PREV：UL3139 Alte Flexibile Silicone Pugna High Temperature Resistant Connectens filumDEINDE：UL3530 High Temperature Repugnans Silicone Mollis instruitur Linea
Parameter
Spec.
mm²） 		Conductor Insulation Diameter filum Max
resistentia
20℃(Ω/KM)
Structure
mm） 		Diameter
mm） 		Nominal
crassitudine
mm） 		Min
crassitudine
mm） 		Nominal
mm） 		tolerantia
mm）
0.5 16/0.20 0.95 0.76 0.69 2.5 ±0.10 40.1
0.75 24/0.20 1.15 0.76 0.69 2.7 ±0.15 26.7
1 32/0.20 1.34 0.76 0.69 2.9 ±0.15 20
1.5 30/0.25 1.6 0.76 0.69 3.2 ±0.15 13.7
2 41/0.25 1.9 0.76 0.69 3.5 ±0.20 9.9
2.5 49/0.25 2 0.76 0.69 3.6 ±0.20 8.21
4 56/0.30 2.7 0.76 0.69 4.3 ±0.20 5.09
6 84/0.30 3.3 1.14 1.03 5.6 ±0.20 3.39
8 70/0.40 1.14 1.03 6.65 0.3
-0.2 		3.39
10 84/0.40 4.6 1.52 1.37 7.7 0.3
-0.2 		1.95
16 126/0.40 5.8 1.52 1.37 8.9 0.3
-0.2 		1.24
25 196/0.40 7.3 1.52 1.37 10.4 0.3
-0.2 		0.795
35 276/0.40 8.6 1.52 1.37 11.7 0.3
-0.2 		0.565
50 396/0.40 10.7 2 1.83 14.7 0.4
-0.2 		0.393
70 360/0.50 12.4 2 1.83 16.4 0.4
-0.2 		0.277
95 475/0.50 14.5 2.4 1.83 18.5 0.4
-0.2 		0.21
120 608/0.50 16 2.4 2.16 20.8 0.4
-0.2 		0.164
150 756/0.50 18 2.4 2.16 22.8 0.6
-0.3 		0.132
185 925/0.50 20 2.4 2.16 24.8 0.6
-0.3 		0.108
240 1221/0.50 23 2.4 2.16 27.8 0.6
-0.3 		0.0817
Quaeso contactus elit ut providere productum specificationes.
