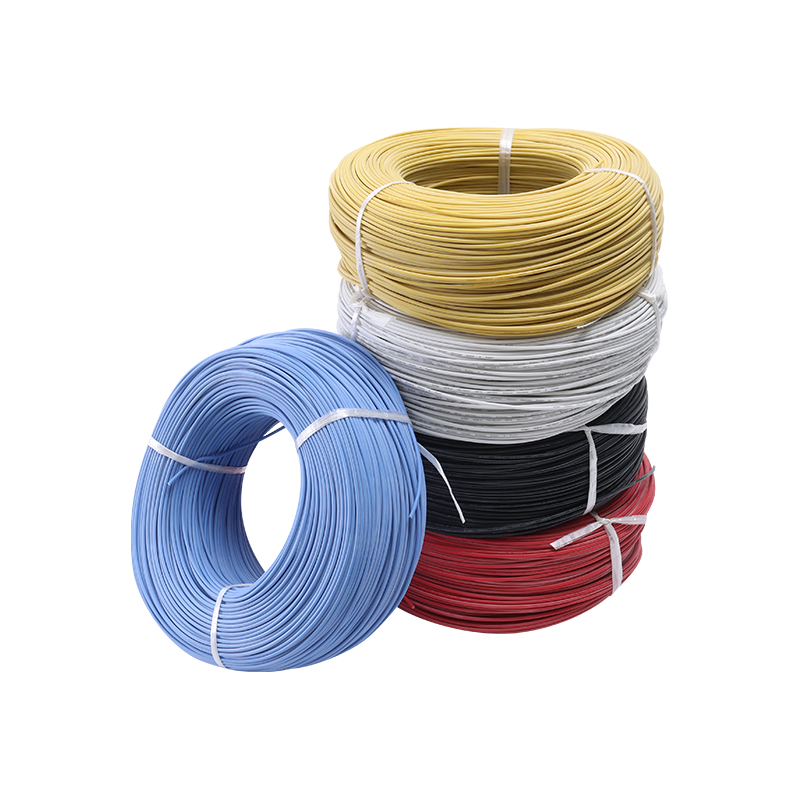

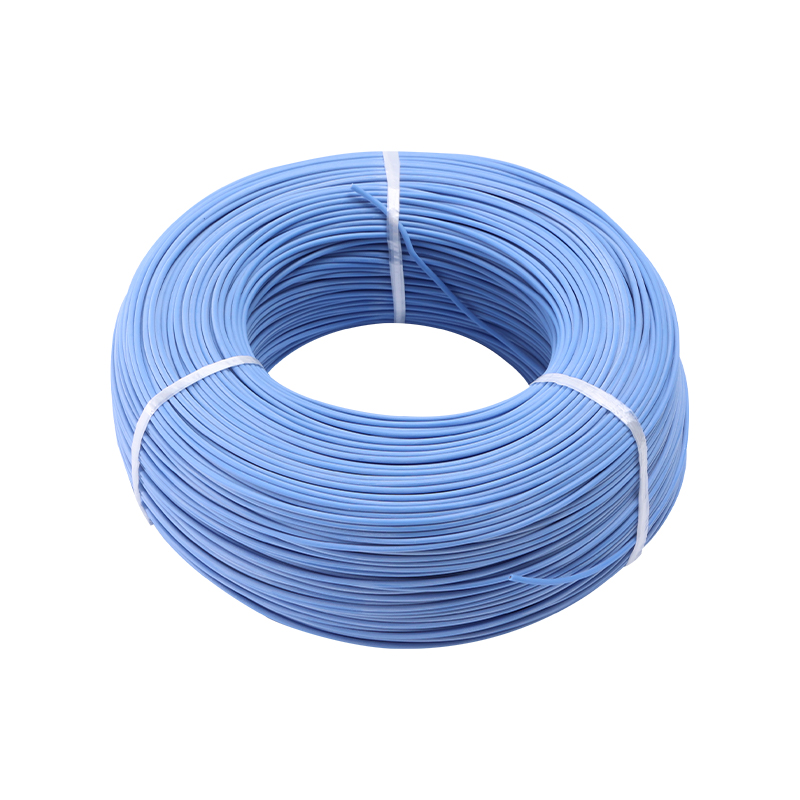

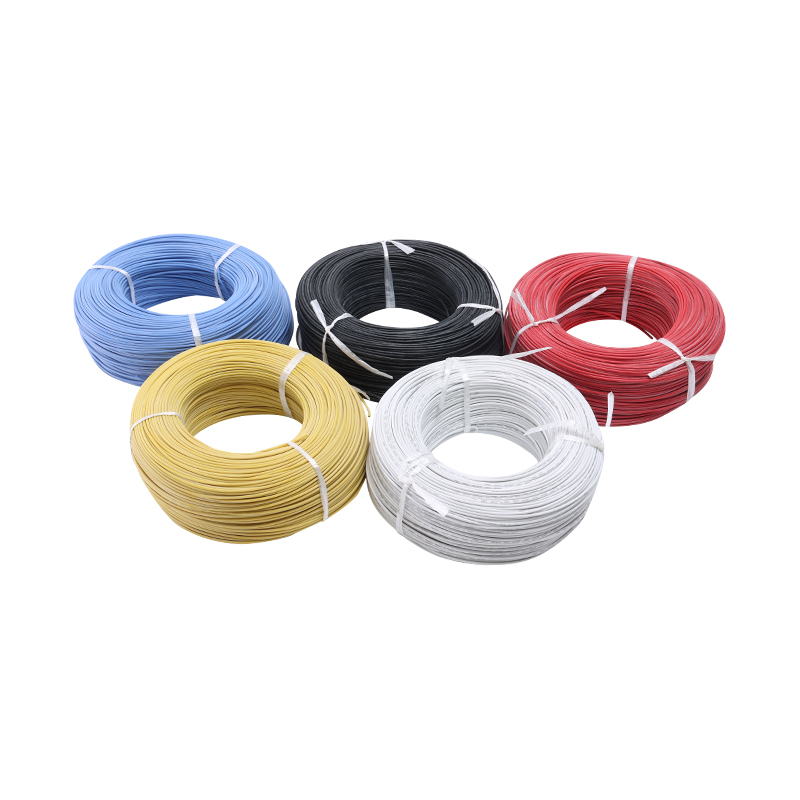

UL3530 High Temperature Repugnans Silicone Mollis instruitur Linea Provisores, Officina

UL3530 High Temperature Repugnans Silicone Mollis instruitur Linea

UL3530 vexillum certificatione: UL758, numerus certificationis: E301946 Ratum intentione: 600V, temperatura aestimata: -60°C~ 200°C, conductor filum aeneum stintum, quod habet firmitatem et repugnantiam corrosionis bonam. Nulla iacuit ex materia iuvantis silicone facta, quae optimam caliditatem resistentiae habet, resistentia frigida et resistentia senescit. Apta caliditas environment, instrumenta electronic, instrumenta industriae. Exemplar 26AWG~3AWG, specificatio: 0.128mm²~26.67mm². Cum filum silicone UL3530 eligens, aptas specificationes et exempla eligere debes secundum applicationes specificas missionum et requisita ut salutem et fidem suam conservent.

PVC Insulated Fila: Substantia, Genera, ac Praecepta Elect...
02 Apr, 2026
Quid sunt PVC insulatae filis et quare late utuntur? PVC insulatas filis sunt conductores electrica — typice aeris vel aluminii — inclusi in vaginam chloridi polyvinyli (PVC) compositi. PV...
READ MORE
Teflon Cable EXPLICATA: Proprietates, Genera, Usus
23 Mar, 2026
Quid est Teflon cable? Funis Teflon refert ad quodvis filum electricum vel funem insulatum vel tectum cum polytetrafluoroethylene (PTFE) — syntheticum fluoropolymer commercium a DuPont artis no...
READ MORE
Quid Scias Ante Eligendo High Voltage Machine Lead Wire?
19 Mar, 2026
What makes a Lead Wire Vere Aptable for High Voltage Machines? A princeps intentione machina plumbum filum est conductor qui ambages internas motorum, generantium et transformat...
READ MORE
Quid Scias Ante Eligendo High Voltage Machine Lead Wire?
13 Mar, 2026
What Is a High Voltage Machine Lead Wire? A princeps voltage machina filum plumbeum est speciale conductor electricae destinatus ad altam intentionem currentem inter ambages machinae elec...
READ MORE

AWG NO.	Spec. mm²）	Conductor		Insulation		Diameter filum		Max resistentia 20℃(Ω/KM)
		Structure mm）	Diameter mm）	Nominal crassitudine mm）	Min crassitudine mm）	Nominal mm）	tolerantia mm）
		Structure mm）	Diameter mm）	Nominal crassitudine mm）	Min crassitudine mm）	Nominal mm）	tolerantia mm）
26	0.128	88.1	0.48	0.76	0.69	2	±0.10	150
24	0.205	7/0.20	0.6	0.76	0.69	2.15	±0.10	94.2
22	0.324	7/0.254	0.75	0.76	0.69	2.3	±0.10	59.4
20	0.519	7/0.32	0.93	0.76	0.69	2.45	±0.15	36.7
18	0.823	7/0.39	1.17	0.76	0.69	2.7	±0.15	23.2
16	1.31	7/0.49	1.47	0.76	0.69	3	±0.20	14.6
14	2.08	41/0.254 64/0.20	1.86	0.76	0.69	3.4	±0.20	8.96
12	3.31	43/0.32	2.5	0.76	0.69	4.1	±0.20	5.64
10	5.26	35/0.45	3.2	1.14	1.03	5.5	0.1	3.546
8	8.367	70/0.40	4.4	1.52	1.37	7.5	0.3	2.23
8	8.367	70/0.40	4.4	1.52	1.37	7.5	-0.2	2.23
7	10.55	84/0.40	4.6	1.52	1.37	7.7	0.2	1.768
6	13.3	105/0.40	5.3	1.52	1.37	8.4	0.3	1.403
6	13.3	105/0.40	5.3	1.52	1.37	8.4	-0.2	1.403
5	16.77	133/0.40	6	1.52	1.37	9.1	0.3	1.113
5	16.77	133/0.40	6	1.52	1.37	9.1	-0.2	1.113
4	21.15	168/0.40	6.8	1.52	1.37	9.9	0.3	0.882
4	21.15	168/0.40	6.8	1.52	1.37	9.9	-0.2	0.882
3	26.67	210/0.40	7.6	1.52	1.37	10.7	0.238	0.6996
Quaeso contactus elit ut providere productum determinationes.
