UL1430 Irradiatio Crucis-Xlpvc Connectens Wire Coniunctum
Home / Productum / Filum insulatum / Irradiata Cross-coniunctum filum / UL1430 Irradiatio Crucis-Xlpvc Connectens Wire Coniunctum
  • UL1430 Irradiatio Crucis-Xlpvc Connectens Wire Coniunctum
  • UL1430 Irradiatio Crucis-Xlpvc Connectens Wire Coniunctum
  • UL1430 Irradiatio Crucis-Xlpvc Connectens Wire Coniunctum
  • UL1430 Irradiatio Crucis-Xlpvc Connectens Wire Coniunctum
  • UL1430 Irradiatio Crucis-Xlpvc Connectens Wire Coniunctum
  • UL1430 Irradiatio Crucis-Xlpvc Connectens Wire Coniunctum

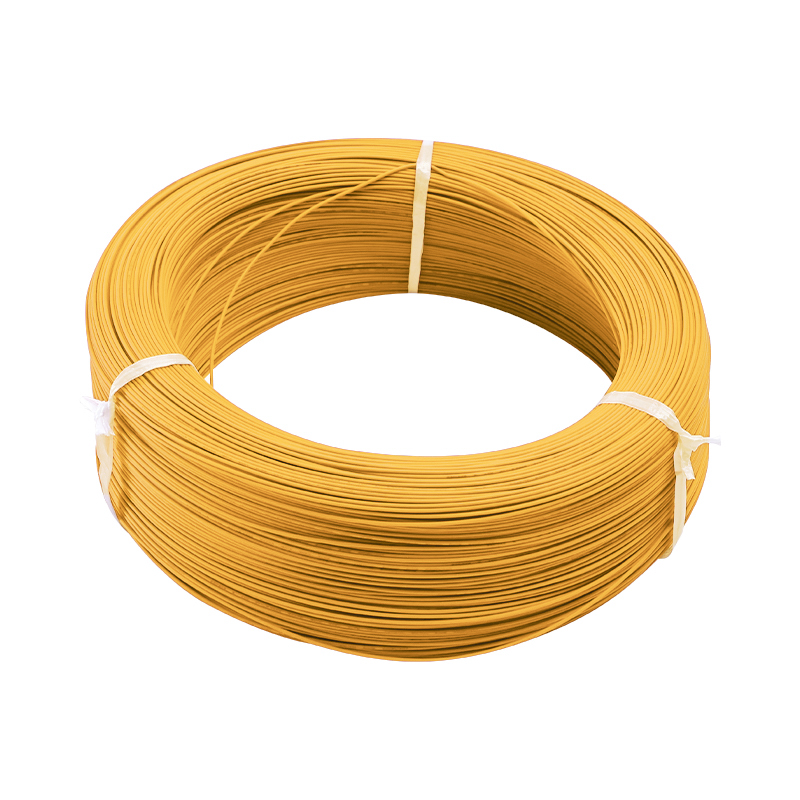

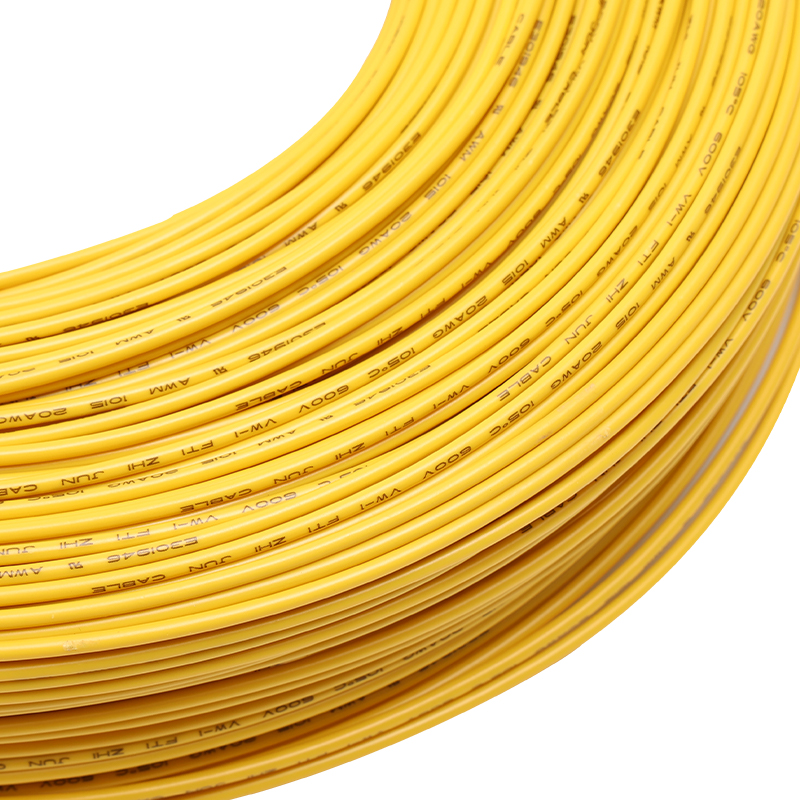

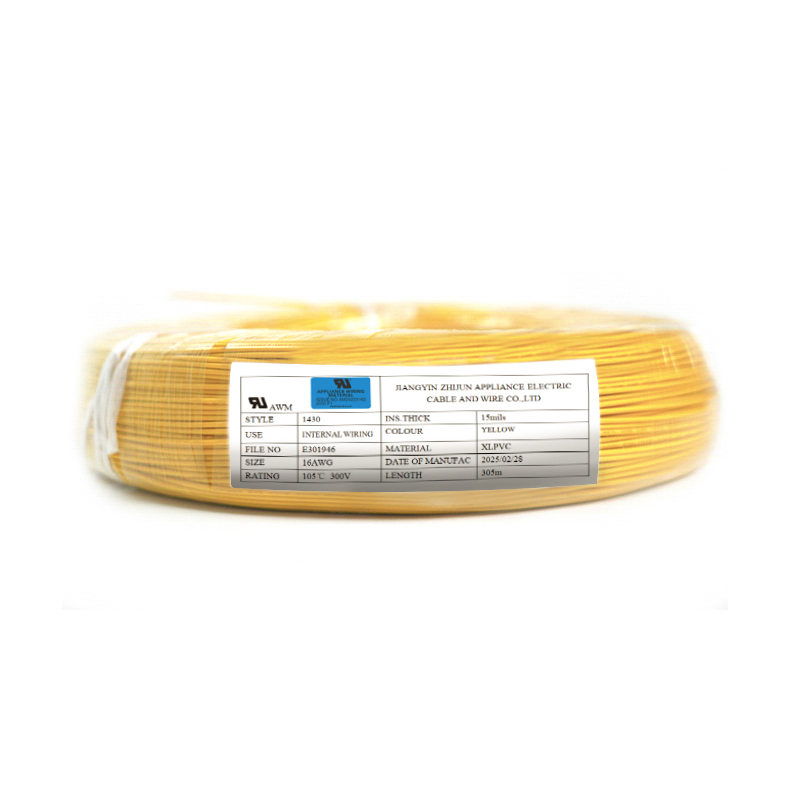

UL1430 Irradiatio Crucis-Xlpvc Connectens Wire Coniunctum

Upgrade systemata electrica tua cum nostris UL1430 Irradiatione crucis-coniunctae XLPVC filum connexum, ad fidem faciendam in applicationibus praecipuis destinato. Ratum est pro operatione 105°C et 300V intentione, haec fila connexionem stabilem efficiunt in ambitus quaerendo, a machinatione industriae ad electronicos consumendos.

Fila ductores solidi vel subductis (30-16 AWG) in cupro striato vel nudo, flexibilitatem pro spatiis strictis et corrosioni resistentibus praebent. Progressus XLPVC velit - concurrentes RoHS environmentalia signa - praestantiorem stabilitatem, chemicam resistentiam, et vires mechanicas praebet, dum flamma UL VW-1 & CSA FT1 transiens probat singularem salutem.

Specimen pro wiring interna in adjumentis, electronicis, et systematibus temperandis, haec fila cum institutione usoris amicabili perficiendi asperam coniungunt. Perfice ad fabros et artifices prioritizationem salutis, longitudinis, efficacitatis.

Contact Us
PREV：UL1431 105°C Securus-ut-cut Wire Irradiatio Crucis Connection Connection WireDEINDE：UL3173 Securus-peel XLPE Wire 125°C
Parameter
Conductor Insulation Max
resistentia
20℃(Ω/KM) 		Dielectric
sterngth
(VAC,1min)
AWG Construction
(No./mm) 		O.D.
(mm) 		Nominal
crassitudine
mm） 		O.D.
(mm)
30 1/0.254 0.254 0.38 1.1 361 2,000
7/0.10 0.3 0.38 1.15 381 2,000
28 1/0.32 0.32 0.38 1.15 227 2,000
7/0.127 0.38 0.38 1.2 239 2,000
26 1/0.404 0.4 0.38 1.25 143 2,000
7/0.16 0.48 0.38 1.3 150 2,000
24 1/0.511 0.51 0.38 1.35 89.3 2,000
11/0.16 0.61 0.38 1.45 94.2 2,000
22 1/0.643 0.64 0.38 1.5 56.4 2,000
17/0.16 0.76 0.38 1.6 59.4 2,000
20 1/0.813 0.81 0.38 1.65 35.2 2,000
26/0.16 0.94 0.38 1.8 36.7 2,000
18 1/1.024 1.02 0.38 1.85 22.2 2,000
16/0.254 1.17 0.38 2 23.2 2,000
16 1/1.29 1.29 0.38 2.1 14 2,000
26/0.254 1.49 0.38 2.35 14.6 2,000
Quaeso contactus elit ut providere productum determinationes.
