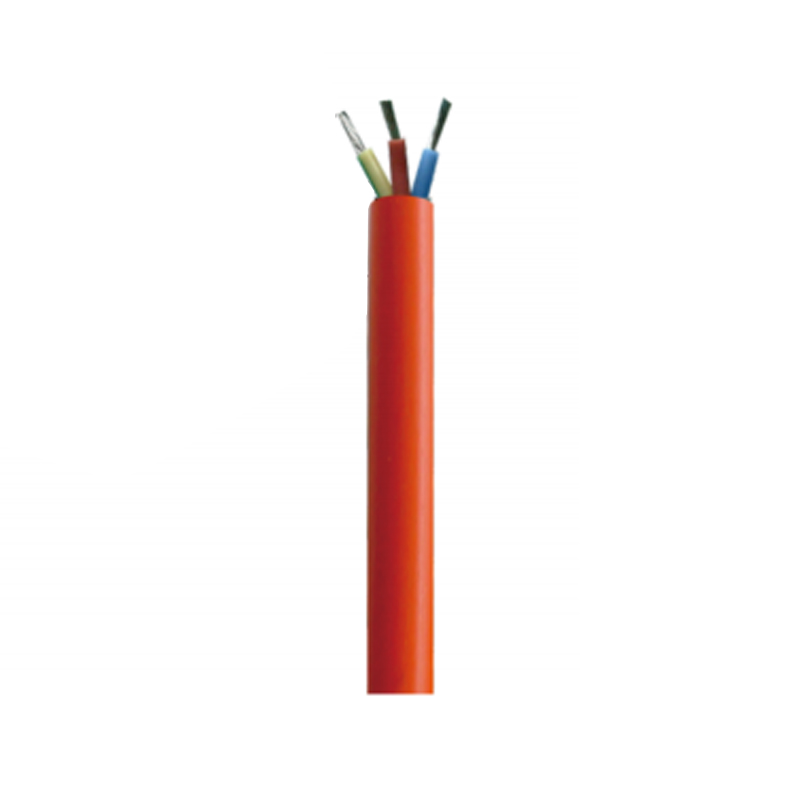

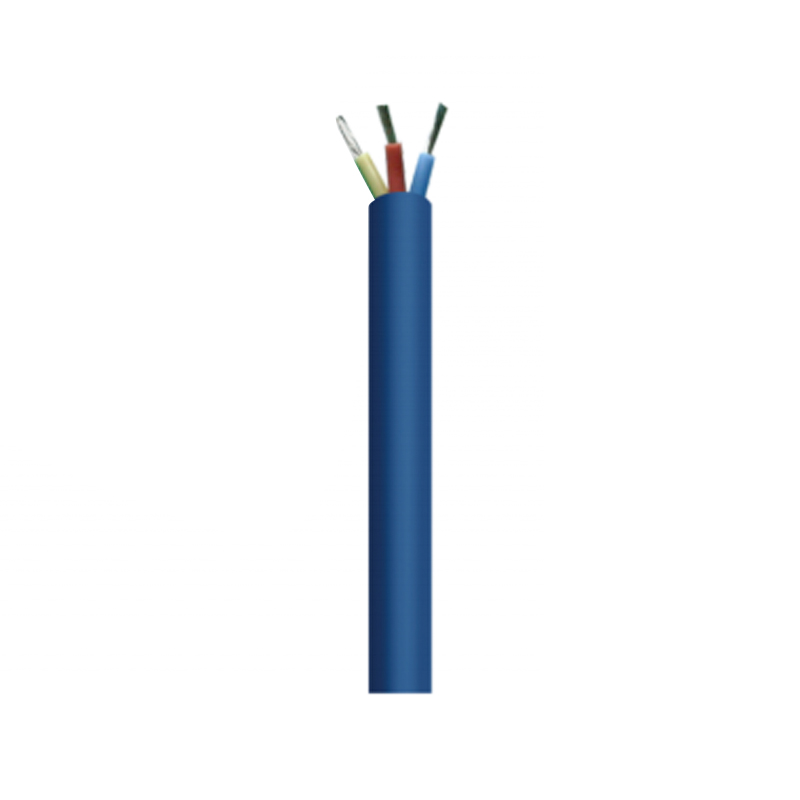

YGZ Heat-Resistentes Silicone Purgamentum Multi-Core recondidit Cable

Silicone vaginatus, funis multi- nucleus est qui iuvantis silicone utitur ut in materia vaginae. Repugnantiam caliditatis optimam habet, resistentiam humilitatis, resistentiam tempestatis et flexibilitatem, stabilitatem chemicam et tutelam environmental. Aestimavit intentionem 600/1000V, temperatura aestimavit -60°C ad 180°C, conductor est aes nudum vel fodiebatur filum aeris, iacuit velit silicone iuvantis, et uagina silicone item Flexilis.
Applicationem locis
1. High temperatus environment: instrumenta temperatura caliditas in metallurgia, fabricatione vitrea, ceramicis et aliis industriis.
2. Mobilis armorum: robots, instrumentum automationis et alias occasiones quae frequenter moventur.
3. Outdoor apparatu: vis armorum potentia ut energiae solaris et energiae ventus.
4. Medicamenta: internae nexus instrumentorum medicorum et instrumentorum.
5. hospitii adjumenta; caliditas adiumenta ut stragula electrici et clibani electrici.
6. Aerospace: electrica nexus in extremis ambitibus ut elit et satellites.
Exempla communia: YGZ, YGZ-GL.
Specificatio range: 2*0.5mm²~3*240mm²
Silicone circumfusae rudentes late utuntur in variis caliditatis et multiplicibus ambitibus ob excellentem observantiam.

Fibreglass Wire Sleeving: Genera, Temperature Ratings, Siz...
28 Sep, 2026
Fibreglass filum manicae est quieta workhorse altae temperaturae electricae consilium. Est tubus vitreus tortis, qui conductor, filum plumbeum, vel totum fasciculum labitur, qui calorem, abrasio...
READ MORE
Custom Cable Manufacturer Guide: Aestimatio, Materia, Cert...
21 Sep, 2026
Consuetudinis funem eligens opificem non simpliciter est de inveniendo supplementum qui filum spec in numerum in partem convertere potest. Socium inveniendi est de eo qui intelligit quomodo fune...
READ MORE
Custom Multi Conductor Cable: A Guide to Specifying Recte
17 Sep, 2026
Productum tuum arcte confertum est, temperatura ambiens prope elementum calefactionis aestimationem filum PVC vexillum excedit, et via fusa quattuor conductores in uno iacco eget. Off-fasciae ru...
READ MORE
Custom Industrial Cables: How to Specify the Right Wire fo...
09 Sep, 2026
Funem qui intra 230°C clibanum deficit, vel motor plumbi qui post duas septimanas summi intentionis servitii frangitur, eandem causam radicem plerumque demonstrat: funem lecta ex catalogo pro co...
READ MORE

Core No. section mm²）	Structure No./diametri mm）	Insulation		Vagina crassitudine mm）	Diameter filum		Max resistentia 20℃(ΩKM)
Core No. section mm²）	Structure No./diametri mm）	Crassitudo mm）	Diameter mm）	Vagina crassitudine mm）	Nominal mm）	tolerantia mm）	Bare cuprum	Tin-coated cuprum
2×0.5	16/0.20	0.6	2.15	0.8	5.9	±0.20	39	40.1
3×0.5	16/0.20	0.6	2.15	0.8	6.2	±0.20	39	40.1
4×0.5	16/0.20	0.6	2.15	0.8	6.8	±0.25	39	40.1
5×0.5	16/0.20	0.6	2.15	0.8	7.4	±0.30	39	40.1
6×0.5	16/0.20	0.6	2.15	0.8	7.6	±0.30	39	40.1
7×0.5	16/0.20	0.6	2.15	0.8	8.1	±0.30	39	40.1
2×0.75	24/0.20	0.6	2.35	0.8	6.3	±0.20	26	26.7
3×0.75	24/0.20	0.6	2.35	0.8	6.7	±0.25	26	26.7
4×0.75	24/0.20	0.6	2.35	1	7.7	±0.30	26	26.7
5×0.75	24/0.20	0.6	2.35	1	8.4	±0.30	26	26.7
6×0.75	24/0.20	0.6	2.35	1	8.6	±0.30	26	26.7
7×0.75	24/0.20	0.6	2.35	1	9.1	±0.30	26	26.7
10×0.75	24/0.20	0.6	2.35	1.2	11.8	±0.30	26	26.7
12×0.75	24/0.20	0.6	2.35	1.3	12.5	±0.30	26	26.7
19×0.75	24/0.20	0.6	2.35	1.5	14.8	±0.40	26	26.7
2×1.0	32/0.20	0.6	2.55	0.8	6.7	±0.25	19.5	20
3×1.0	32/0.20	0.6	2.55	1	7.5	±0.30	19.5	20
4×1.0	32/0.20	0.6	2.55	1	8.2	±0.30	19.5	20
5×1.0	32/0.20	0.6	2.55	1	8.9	±0.30	19.5	20
6×1.0	32/0.20	0.6	2.55	1	9.2	±0.30	19.5	20
7×1.0	32/0.20	0.6	2.55	1	9.7	±0.30	19.5	20
10×1.0	32/0.20	0.6	2.55	1.2	12.6	±0.30	19.5	20
12×1.0	32/0.20	0.6	2.55	1.4	13.5	±0.30	19.5	20
19×1.0	32/0.20	0.6	2.55	1.5	15.8	±0.40	19.5	20
2×1.5	30/0.25	0.6	2.9	1	7.8	±0.30	13.3	13.7
3×1.5	30/0.25	0.6	2.9	1	8.3	±0.30	13.3	13.7
4×1.5	30/0.25	0.6	2.9	1	9	±0.30	13.3	13.7
5×1.5	30/0.25	0.6	2.9	1.1	10	±0.30	13.3	13.7
6×1.5	30/0.25	0.6	2.9	1.1	10.4	±0.30	13.3	13.7
7×1.5	30/0.25	0.6	2.9	1.1	10.9	±0.30	13.3	13.7
10×1.5	30/0.25	0.6	2.9	1.2	14	±0.30	13.3	13.7
12×1.5	30/0.25	0.6	2.9	1.4	14.9	±0.40	13.3	13.7
14×1.5	30/0.25	0.6	2.9	1.4	15.7	±0.40	13.3	13.7
16×1.5	30/0.25	0.6	2.9	1.4	16.6	±0.40	13.3	13.7
18×1.5	30/0.25	0.6	2.9	1.6	17.2	±0.40	13.3	13.7
19×1.5	30/0.25	0.6	2.9	1.6	17.7	±0.40	13.3	13.7
20×1.5	30/0.25	0.6	2.9	1.8	18.4	±0.40	13.3	13.7
24×1.5	30/0.25	0.6	2.9	1.8	21	±0.40	13.3	13.7
27×1.5	30/0.25	0.6	2.9	2	22	±0.50	13.3	13.7
37×1.5	30/0.25	0.6	2.9	2.4	25.2	±0.50	13.3	13.7
2×2.5	50/0.25	0.7	3.4	1.2	9.2	±0.30	7.98	8.21
3×2.5	50/0.25	0.7	3.4	1.2	9.8	±0.30	7.98	8.21
4×2.5	50/0.25	0.7	3.4	1.2	10.6	±0.30	7.98	8.21
5×2.5	50/0.25	0.7	3.4	1.2	11.6	±0.30	7.98	8.21
6×2.5	50/0.25	0.7	3.4	1.2	12	±0.30	7.98	8.21
7×2.5	50/0.25	0.7	3.4	1.2	12.6	±0.30	7.98	8.21
10×2.5	50/0.25	0.7	3.4	1.4	16.4	±0.40	7.98	8.21
12×2.5	50/0.25	0.7	3.4	1.6	17.4	±0.40	7.98	8.21
19×2.5	50/0.25	0.7	3.4	1.8	20.6	±0.40	7.98	8.21
24×2.5	50/0.25	0.7	3.4	2.2	25	±0.50	7.98	8.21
27×2.5	50/0.25	0.7	3.4	2.4	25.9	±0.50	7.98	8.21
37×2.5	50/0.25	0.7	3.4	2.4	28.8	±0.50	7.98	8.21
2×4	56/0.30	0.8	4.3	1.2	11.2	±0.30	4.95	5.09
3×4	56/0.30	0.8	4.3	1.3	12	±0.30	4.95	5.09
4×4	56/0.30	0.8	4.3	1.5	13.5	±0.30	4.95	5.09
5×4	56/0.30	0.8	4.3	1.5	14.8	±0.40	4.95	5.09
6×4	56/0.30	0.8	4.3	1.8	15.7	±0.40	4.95	5.09
7×4	56/0.30	0.8	4.3	1.8	16.6	±0.40	4.95	5.09
12/4	56/0.30	0.8	4.3	2.2	22.4	±0.50	4.95	5.09
2×6	84/0.30	0.8	4.9	1.5	13	±0.30	3.3	3.39
3×6	84/0.30	0.8	4.9	1.5	13.7	±0.30	3.3	3.39
4×6	84/0.30	0.8	4.9	1.8	15.6	±0.40	3.3	3.39
5×6	84/0.30	0.8	4.9	1.8	17	±0.40	3.3	3.39
6×6	84/0.30	0.8	4.9	2	18	±0.40	3.3	3.39
7×6	84/0.30	0.8	4.9	2	18.8	±0.40	3.3	3.39
2×10	84/0.40	1	6.6	1.8	17	±0.40	1.91	1.95
3×10	84/0.40	1	6.6	2	18.4	±0.50	1.91	1.95
4×10	84/0.40	1	6.6	2.2	20.6	±0.50	1.91	1.95
5×10	84/0.40	1	6.6	2.4	22.8	±0.50	1.91	1.95
2×16	126/0.40	1.2	8.2	2	22.6	±0.50	1.21	1.24
3×16	126/0.40	1.2	8.2	2.2	22.4	±0.50	1.21	1.24
4×16	126/0.40	1.2	8.2	2.4	25	±0.50	1.21	1.24
5×16	126/0.40	1.2	8.2	2.6	27.6	±0.50	1.21	1.24
2×25	196/0.40	1.4	10.1	2.2	25	±0.50	0.78	0.795
3×25	196/0.40	1.4	10.1	2.4	27	±0.50	0.78	0.795
4×25	196/0.40	1.4	10.1	2.4	29.5	±0.50	0.78	0.795
5×25	196/0.40	1.4	10.1	2.6	32.8	±0.60	0.78	0.795
2×35	276/0.40	1.4	11.4	2.4	28	±0.50	0.554	0.565
3×35	276/0.40	1.4	11.4	2.6	30	±0.50	0.554	0.565
4×35	276/0.40	1.4	11.4	2.6	33	±0.60	0.554	0.565
3×50	396/0.40	1.6	13.9	2.8	36	±0.60	0.386	0.393
4×50	396/0.40	1.6	13.9	2.8	39.6	±0.60	0.386	0.393
3×70	360/0.50	1.6	15.6	3	40	±0.60	0.272	0.277
3×95	475/0.50	1.8	18.1	3.2	45.8	±0.80	0.206	0.21
3×120	608/0.50	2	20	3.6	50.6	±0.80	0.161	0.164
3×150	756/0.50	2.2	22.4	3.8	56.2	±0.80	0.129	0.132
3× 185	925/0.50	2.4	24.8	4	61.8	±1.0	0.106	0.108
3×240	1221/0.50	2.6	28.2	4.2	69.4	±1.0	0.0801	0.082
Quaeso contactu servitii emptoris ad specificas uber praebendas.

Core No. section（ mm²）	Structure No./diametri mm）		Insulation diameter mm）		Vagina crassitudine mm）	Diameter filum Nominal tolerantia
						Diameter filum Nominal tolerantia
						Nominal mm）	tolerantia（mm）
3×1.5 1×1.0	30/0.25	32/0.20	2.9	2.55	1	8.9	±0.30
3×2 1×1.5	41/0.25	30/0.25	3.3	2.9	1.2	10.4	±0.30
3×2.5 1×1.5	49/0.25	30/0.25	3.4	2.9	1.2	10.5	±0.30
3×4 1×25	56/0.30	49/0.25	4.3	3.4	1.5	13	±0.30
3×6 1/4	84/0.30	56/0.30	4.9	4.3	1.5	14.7	±0.40
3×10 1×6	84/0.40	84/0.30	6.6	4.9	2	19.3	±0.50
3×16 1×10	126/0.40	84/0.40	8.2	6.6	2.2	23.4	±0.50
3×25 1×16	196/0.40	126/0.40	10.1	8.2	2.4	28.2	±0.50
3×35 1×16	276/0.40	126/0.40	11.4	8.2	2.6	31.6	±0.50
3×35 1×25	276/0.40	196/0.40	11.4	10.1	2.6	32.2	±0.60
3×50 1×25	396/0.40	196/0.40	13.9	10.1	2.8	37.8	±0.60
3×50 1×35	396/0.40	276/0.40	13.9	11.4	2.8	38.4	±0.60
3×70 1×35	360/0.50	276/0.40	15.6	11.4	3	42.2	±0.60
3×70 1×50	360/0.50	396/0.40	15.6	13.9	3	43	±0.60
3×95 1×50	475/0.50	396/0.40	18.1	13.9	3.2	48.3	±0.60
3× 120 1×70	608/0.50	360/0.50	20	15.6	3.6	53.5	±0.80
3×150 1×70	756/0.50	360/0.50	22.4	15.6	3.8	58.3	±0.80
3×150 1×95	756/0.50	475/0.50	22.4	18.1	3.8	60	±1.0
3× 185 1×70	925/0.50	360/0.50	24.8	15.6	4	64.2	±1.0
3× 185 1×95	925/0.50	475/0.50	24.8	18.1	4.2	65.8	±1.0
3×240 1×95	1221/0.50	475/0.50	28.2	18.1	4.5	72.8	±1.0
3× 240 1×120	1221/0.50	608/0.50	28.2	2	4.5	75	±1.2
Quaeso contactu servitii emptoris ad specificas uber praebendas.
