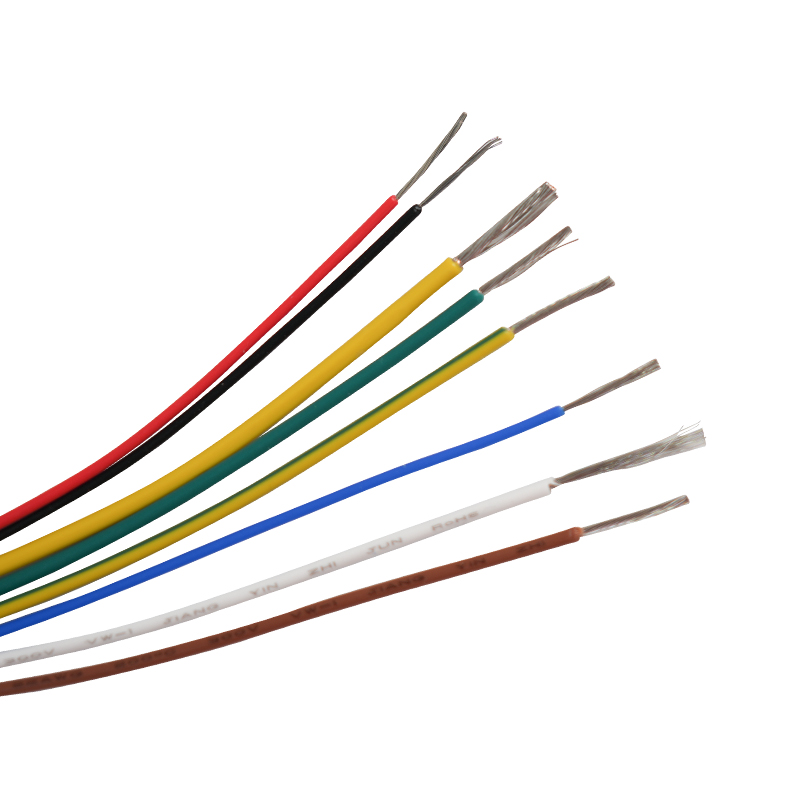

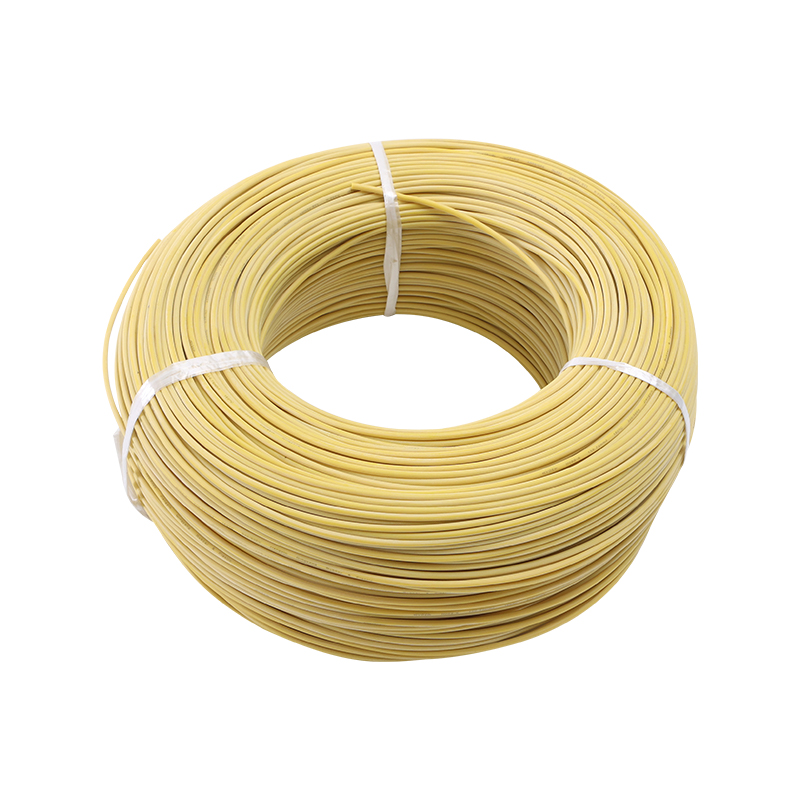

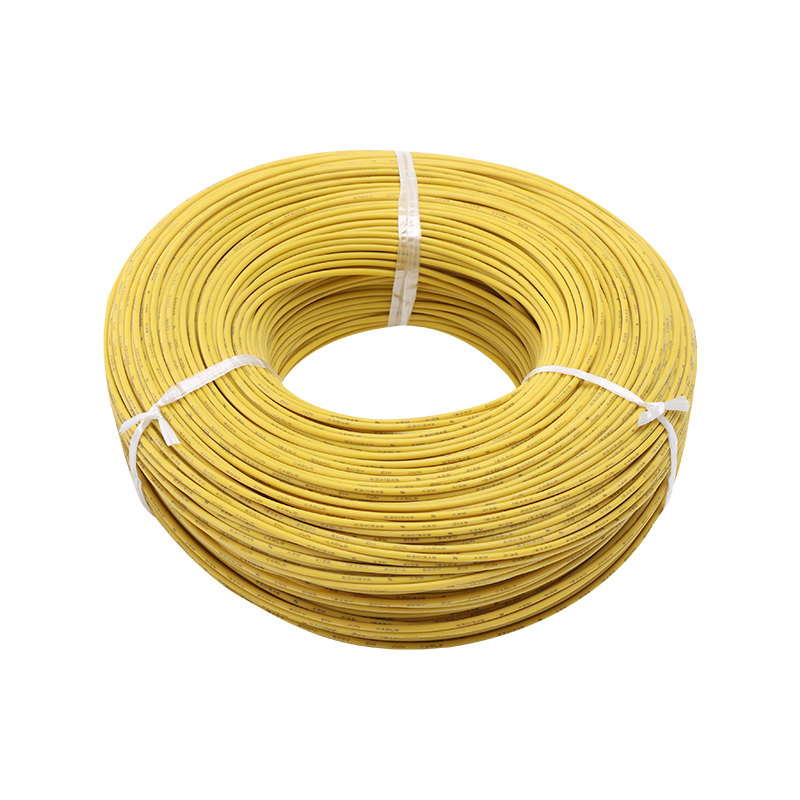

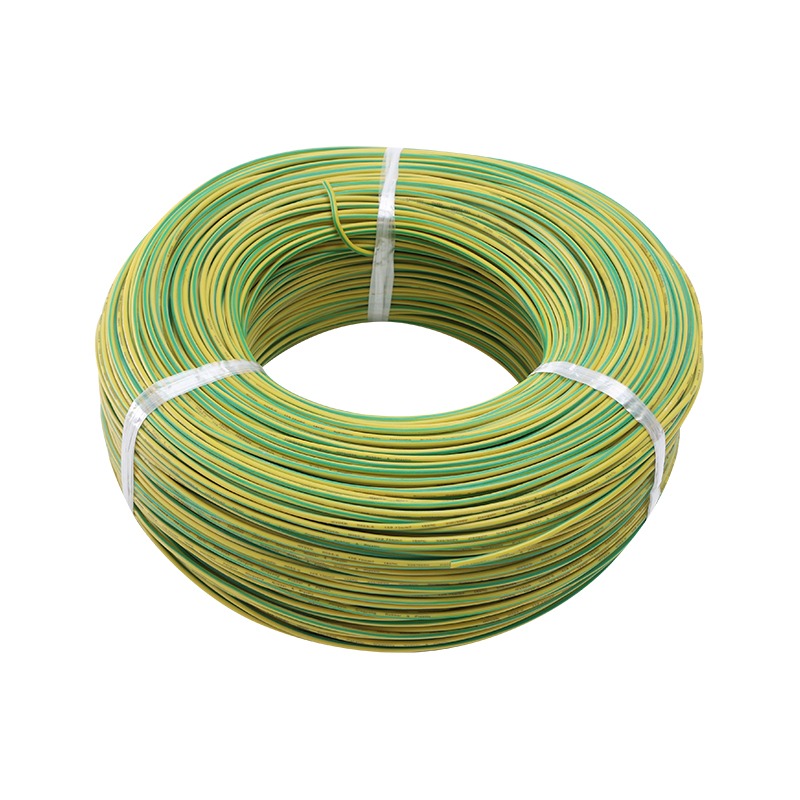

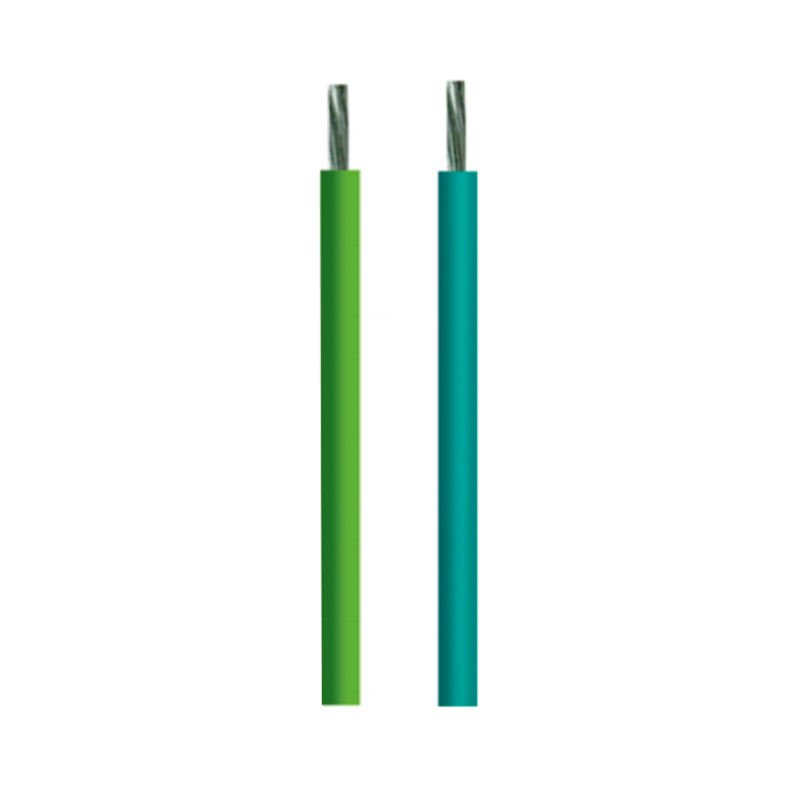

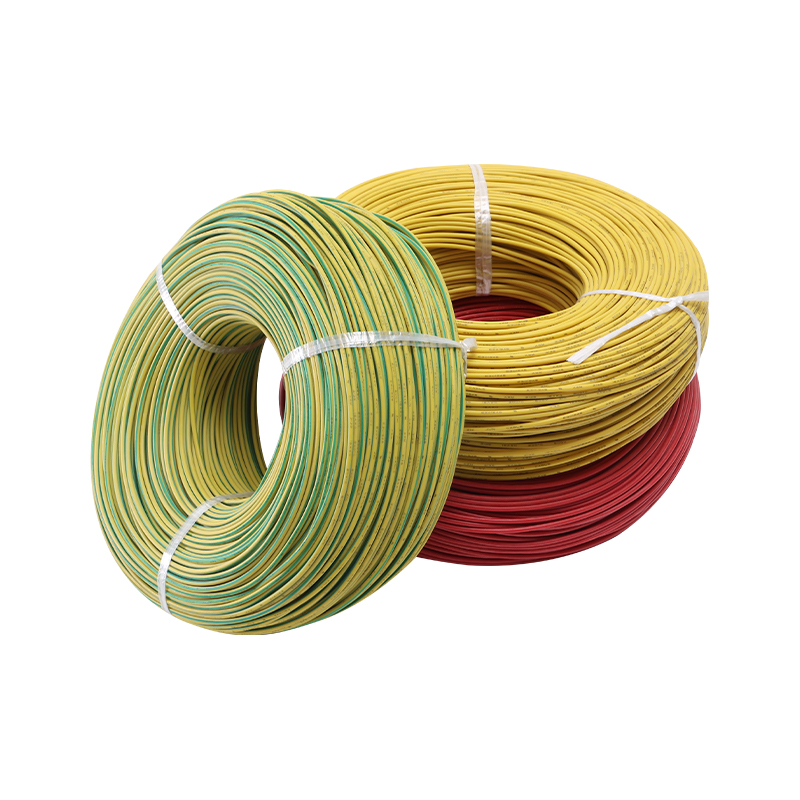

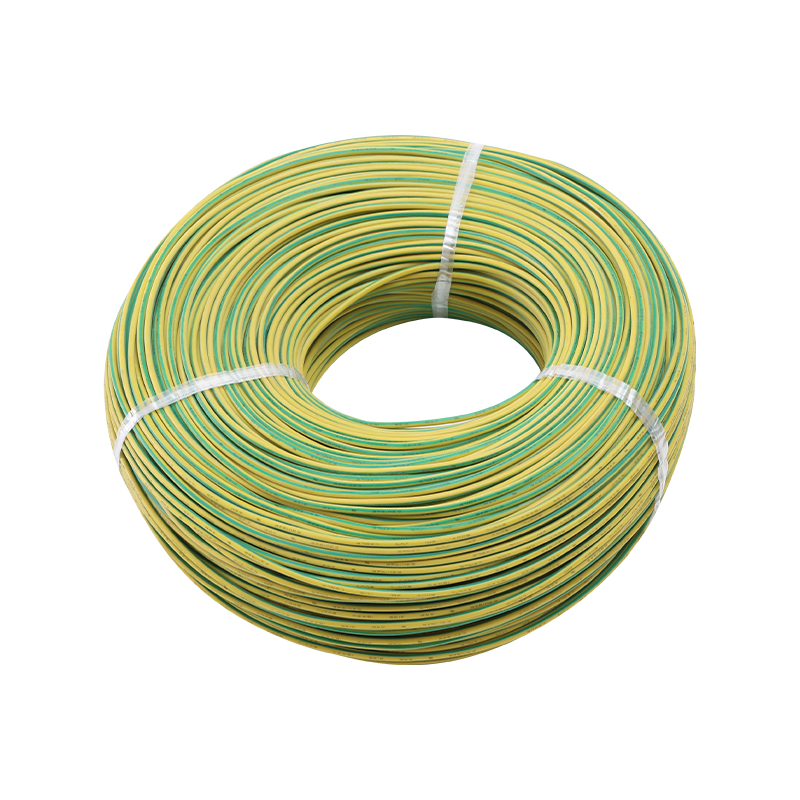

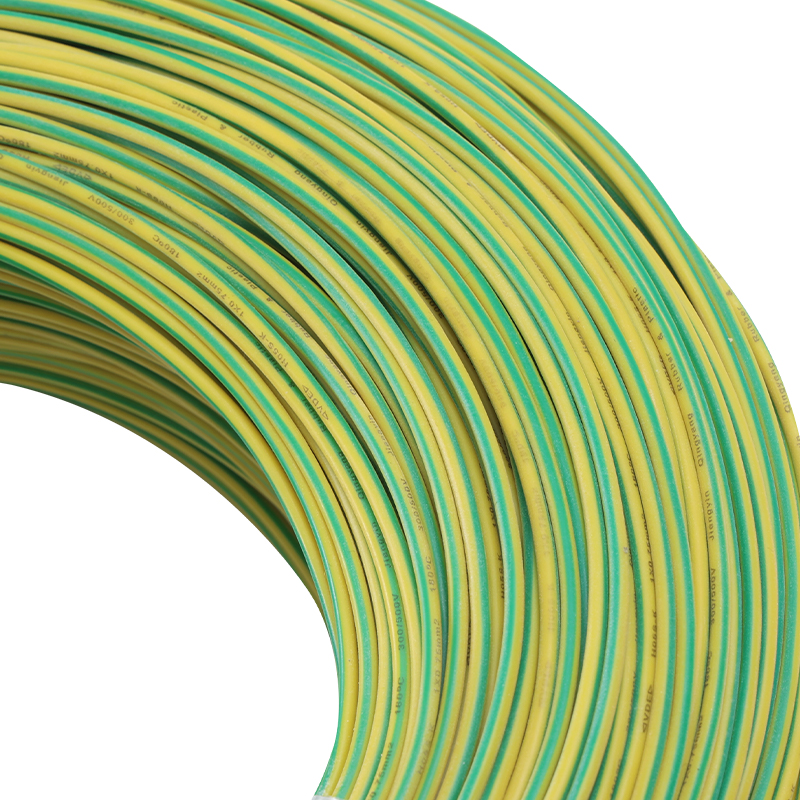

H03s-K Vde Certified Silicone Purgamentum Insulated Single Core Filum 0.75/1.0/1.5 Quadratum

H03S-K filum silicone commune est genus filum.
Fit ex pluribus filis subtilibus filis aeris contortis, flexibilitate et conductu bona.
Utitur silicone materia, quae habet excellentem resistentiam caliditatis, resistentiam caliditatis, resistentiae senescentis, resistentiae corrosionis et aliarum notarum.
300/300V, apta ad apparatum electrica low-voltagem.
Operans temperatus range plerumque -60°C ad 180° C
Apta est ad instrumenta electrica, instrumenta domestica, apparatum industrialem, apparatum accendit, etc. in ambitus caliditatis.
Saepe usus est in occasionibus quae crebras motus vel flexiones requirunt, ut robots, instrumentorum automationum, etc.
Certification standard: DIN VDE 0282-3 Certification number: 40015714
7. Specification range: 0.5~2.5mm²

Contact Us
PREV：UL3367 Silicone Maximum Temperature Repugnans WireDEINDE：H05S-K Vde German Standard Wiring Harness Processing High Temperature Resistant Silicone Connection Line
Parameter
Spec.
mm²） 		Conductor Insulation Diameter filum Max
resistentia
20℃(Ω/KM)
Structure
mm） 		Diameter
mm） 		Nominal
crassitudine
mm） 		Min
crassitudine
mm） 		Nominal
mm） 		tolerantia
mm）
0.5 28/0.15 0.95 0.6 0.44 2.15 ±0.15 40.1
16/0.20
0.75 24/0.20 1.15 0.6 0.44 2.35 ±0.15 26.7
42/0.15
1 32/0.20 1.34 0.6 0.44 2.54 ±0.15 20
1.5 30/0.25 1.6 0.7 0.53 3 ±0.20 13.7
48/0.20
2.5 49/0.25 2 0.8 0.62 5.6 ±0.20 8.21
51/0.25
Quaeso contactus elit ut providere productum determinationes.
