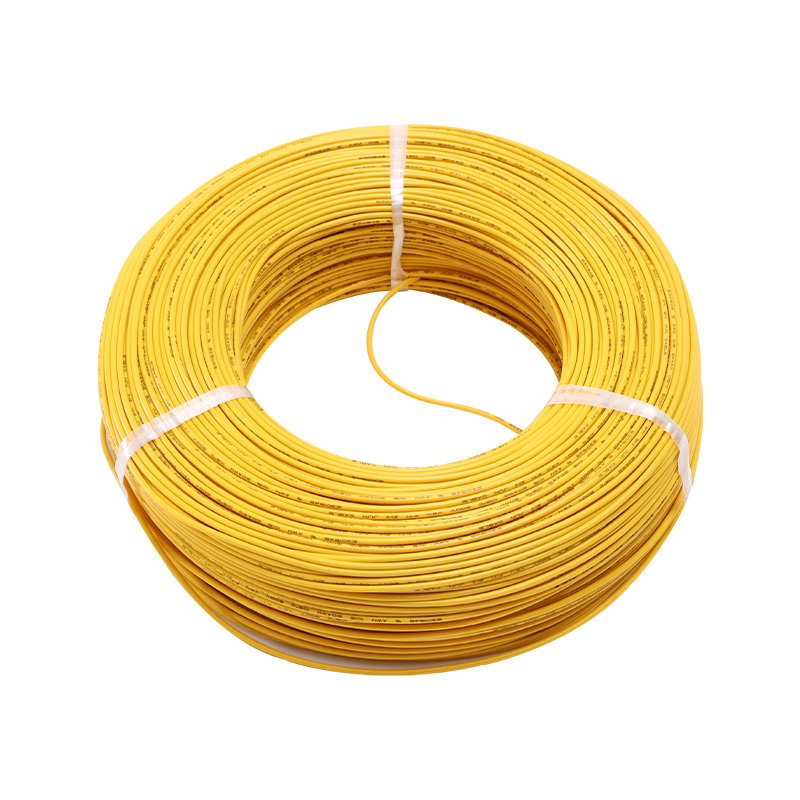

UL1330/1331 Ul Certified Fluoroplastic Filum Maximum Temperature Resistant 200°C
Home / Productum / Filum insulatum / Teflon Wire / UL1330/1331 Ul Certified Fluoroplastic Filum Maximum Temperature Resistant 200°C
  • UL1330/1331 Ul Certified Fluoroplastic Filum Maximum Temperature Resistant 200°C
  • UL1330/1331 Ul Certified Fluoroplastic Filum Maximum Temperature Resistant 200°C
  • UL1330/1331 Ul Certified Fluoroplastic Filum Maximum Temperature Resistant 200°C
  • UL1330/1331 Ul Certified Fluoroplastic Filum Maximum Temperature Resistant 200°C
  • UL1330/1331 Ul Certified Fluoroplastic Filum Maximum Temperature Resistant 200°C
  • UL1330/1331 Ul Certified Fluoroplastic Filum Maximum Temperature Resistant 200°C
  • UL1330/1331 Ul Certified Fluoroplastic Filum Maximum Temperature Resistant 200°C
  • UL1330/1331 Ul Certified Fluoroplastic Filum Maximum Temperature Resistant 200°C

UL1330/1331 Ul Certified Fluoroplastic Filum Maximum Temperature Resistant 200°C

Machinatus ad quaerendas ambitus nostros UL1330/1331 e filis fluoroplasticis certificatis singularem fidem in applicationibus summus temperatus tradet. Cum 600V aestimatione et eximiis scelerisque resistentibus, CC°C (UL1330) et 150°C (UL1331) — haec fila constantem obtinent actionem in asperis condicionibus, a machinatione industriae ad electronicas provectas.

Lorem conductores in stanno, argento vel cupro nickel-patellato, solutiones formandas offerunt pro corrosione resistendi, conductivity et vetustate. Nulla in FEP flammam resistentiam praestantem praebet, stabilitatem chemicam, et flexibilitatem, dum signa tuta UL conveniunt. Specimen pro electronicis, accensis, calefactionibus, instrumentis et systematibus autocinetis, haec fila praestant ubi ordinariae rudentes deficiunt.

Contact Us
PREV：UL1332/1333 Pep Teflon Polymerus Insulatus Plastic WireDEINDE：Proximum productum non
Parameter
AWG
NO. 		Spec.
mm²） 		Conductor Insulation Diameter filum Max
resistentia
20℃(Ω/KM)
Structure
mm） 		Diameter
mm） 		Nominal
crassitudine
mm） 		Min
crassitudine
mm） 		Nominal
mm） 		tolerantia
mm）
30 0.05 1/0.254 0.254 0.51 0.46 1.28 ±0.10 361
0.05 7/0.10 0.3 0.51 0.46 1.32 ±0.10 381
28 0.08 1/0.32 0.32 0.51 0.46 1.34 ±0.10 227
0.08 7/0.12 0.36 0.51 0.46 1.38 ±0.10 239
26 0.128 1/0.42 0.42 0.51 0.46 1.44 ±0.10 143
0.128 7/0.15 0.48 0.51 0.46 1.5 ±0.10 150
24 0.21 1/0.52 0.52 0.51 0.46 1.54 ±0.10 89.3
0.21 7/0.20 0.6 0.51 0.46 1.62 ±0.10 94.2
0.21 19/0.12 0.6 0.51 0.46 1.62 ±0.10 94.2
22 0.33 1/0.65 0.65 0.51 0.46 1.67 ±0.10 56.4
0.33 7/0.25 0.75 0.51 0.46 1.77 ±0.10 59.4
0.33 19/0.15 0.75 0.51 0.46 1.77 ±0.10 59.4
20 0.52 1/0.82 0.82 0.51 0.46 1.84 ±0.10 35.2
0.52 7/0.32 0.93 0.51 0.46 1.95 ±0.10 36.7
0.52 19/0.19 0.95 0.51 0.46 1.97 ±0.10 36.7
18 0.823 19/0.235 1.18 0.51 0.46 2.2 ±0.10 23.2
17 1.04 19/0.265 1.33 0.51 0.46 2.35 ±0.10 18.3
16 1.34 19/0.30 1.5 0.51 0.46 2.52 ±0.10 14.6
15 1.65 19/0.33 1.65 0.51 0.46 2.67 ±0.10 11.3
14 2.08 19/0.375 1.88 0.51 0.46 2.9 ±0.10 8.96
13 2.63 19/0.42 2.1 0.51 0.46 3.12 ±0.10 7.1
12 3.31 19/0.475 2.38 0.51 0.46 3.4 ±0.10 5.64
11 4.19 19/0.53 2.65 0.51 0.46 3.67 ±0.10 4.48
10 5.24 37/0.425 2.98 0.51 0.46 4 ±0.10 3.546
Quaeso contactus elit ut providere productum determinationes.
