UL3071/3074/3075 Cum tortis Silicone filum
Home / Productum / Filum insulatum / Silicone Flexilis filum tortis / UL3071/3074/3075 Cum tortis Silicone filum
  • UL3071/3074/3075 Cum tortis Silicone filum
  • UL3071/3074/3075 Cum tortis Silicone filum
  • UL3071/3074/3075 Cum tortis Silicone filum
  • UL3071/3074/3075 Cum tortis Silicone filum
  • UL3071/3074/3075 Cum tortis Silicone filum
  • UL3071/3074/3075 Cum tortis Silicone filum

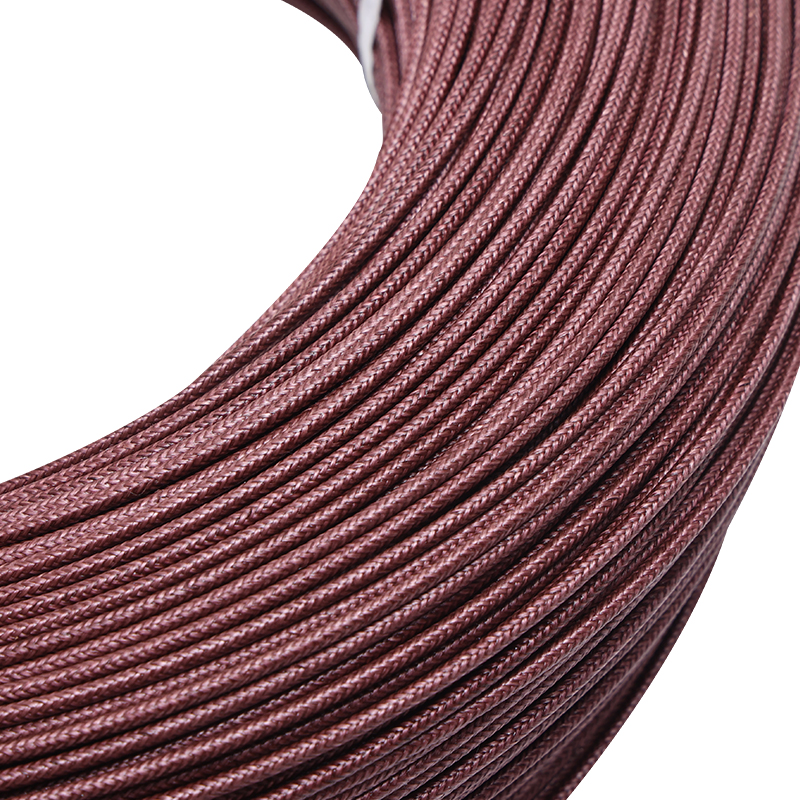

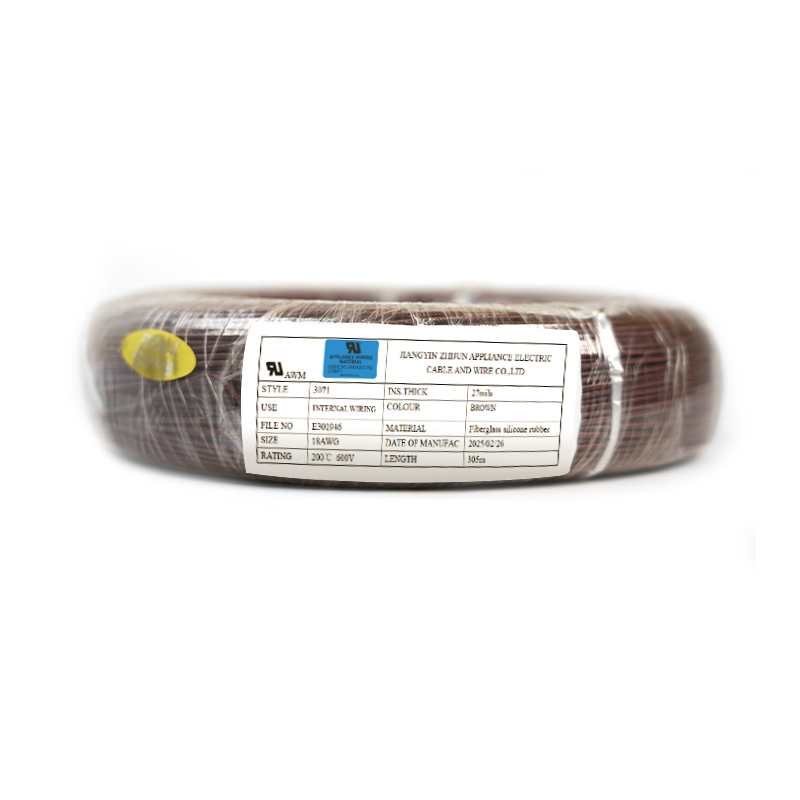

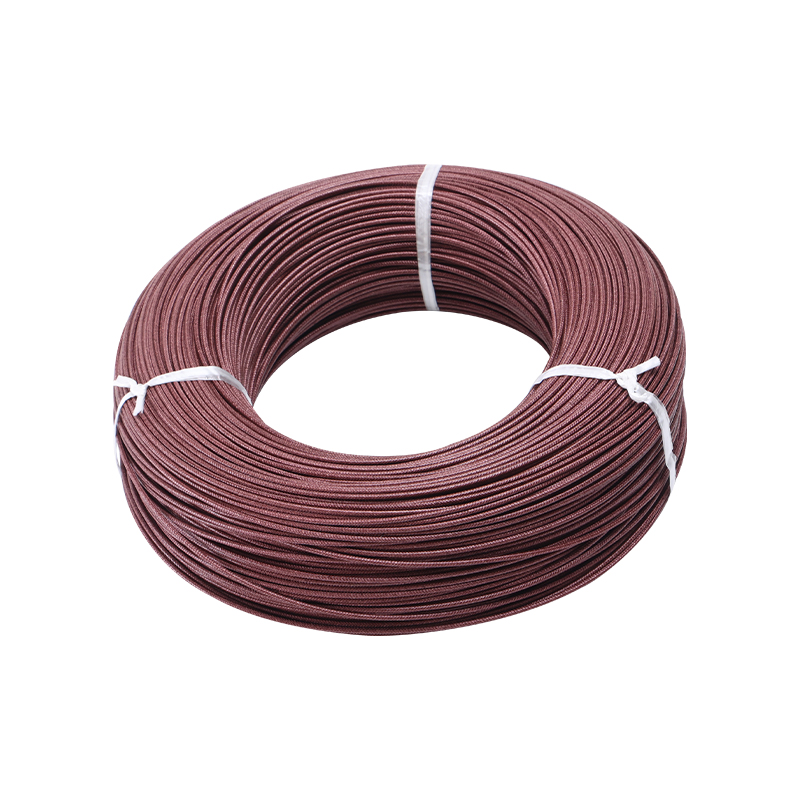

UL3071/3074/3075 Cum tortis Silicone filum

Hoc UL3071 3074 3075 cum filum silicone tortis exsequi voluit intentione aestimationis 600V et fideliter operatur in temperaturis usque ad CC°C. Ductor in multis optionibus summus qualitas praesto est, incluso aes nudum, stannum, argentum iactaret, vel cuprum nickel iactaret, praestans electrica conductivity et vetustatem praestans.

Silicone iuvantis in premium velit, filum flexibilitatem eximiam praebet et resistentiam contra ambitus asperos. Nulla fibreglass bracteis integrata roborat, offerens superiorem vim mechanicam et tutelam ab abrasione et accentus corporis. Accedit, resina robusta silicone longius efficiens auget resistentiam filum in chemicas et factores environmental, diuturna opera procurans.

Perfecta pro electronicis, adjumenta electrica, systemata illustrantia, et productorum electricorum calefactio, hoc filum postulata occurrit etiam gravissimarum summus temperaturae occasus. Upgrade solutiones wiring cum UL3071/3074/3075 serie et experientia aucta salus, efficientia et commendatio. Crede hoc filum provectum ut incepta tua perficiendi et longitudinis liberandae requirant, in omni applicatione animi tranquillitatem praestando.

Contact Us
PREV：UL3144 Fiber Silicone vitreumDEINDE：UL3172 Silicone Insulated filum
Parameter
Type AWG
NO. 		Conductor Insulation Fibra vitri crassities
mm） 		Diameter filum Max
resistentia
20℃(Ω/KM)
Spec.
mm²） 		Structure
mm） 		Diameter
mm） 		Nominal
crassitudine
mm） 		Min
crassitudine
mm） 		Insulation
diametri
mm） 		Nominal
mm） 		tolerantia
mm）
AWM
3071 		18 0.823 7/0.39
33/0.18 		1.20 0.76 0.69 2.75 0.25 3.25 ±0.20 23.2
16 1.31 7/0.49 1.47 0.76 0.69 3 0.25 3.5 ±0.20 14.6
52/0.18 1.55 0.76 0.69 3.1 0.25 3.6 ±0.20
14 2.08 7/0.62 1.90 0.76 0.69 3.45 0.25 3.95 ±0.20 8.96
9.90
41/0.254
64/0.20
13 2.63 54/0.25 2.05 0.76 0.69 3.6 0.25 4.1 ±0.20 7.1
18 0.823 1/1.00 1.00 0.76 0.69 2.6 0.25 3.1 ±0.20 22.2
16 1.31 1/1.30 1.30 0.76 0.69 2.9 0.25 3.4 ±0.20 14
1.5 30/0.25 1.60 0.76 0.69 3.2 0.25 3.8 ±0.20 14.6
14 2.08 1/1.65 1.65 0.76 0.69 3.2 0.25 3.9 ±0.20 8.78
64/0.20 8.96
12 3.31 43/0.32 2.5 0.76 0.69 4.05 0.25 4.55 0.3
-0.2 		5.64
10 5.261 35/0.45 3.2 1.15 1.05 5.5 0.25 6 0.3
-0.2 		3.546
Quaeso contactus elit ut providere productum determinationes.
