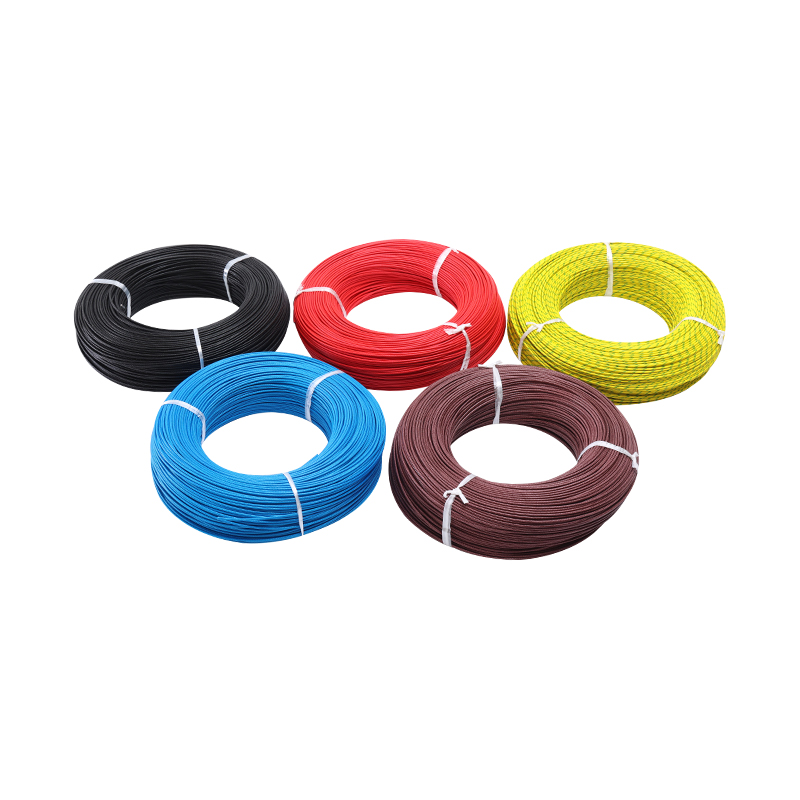

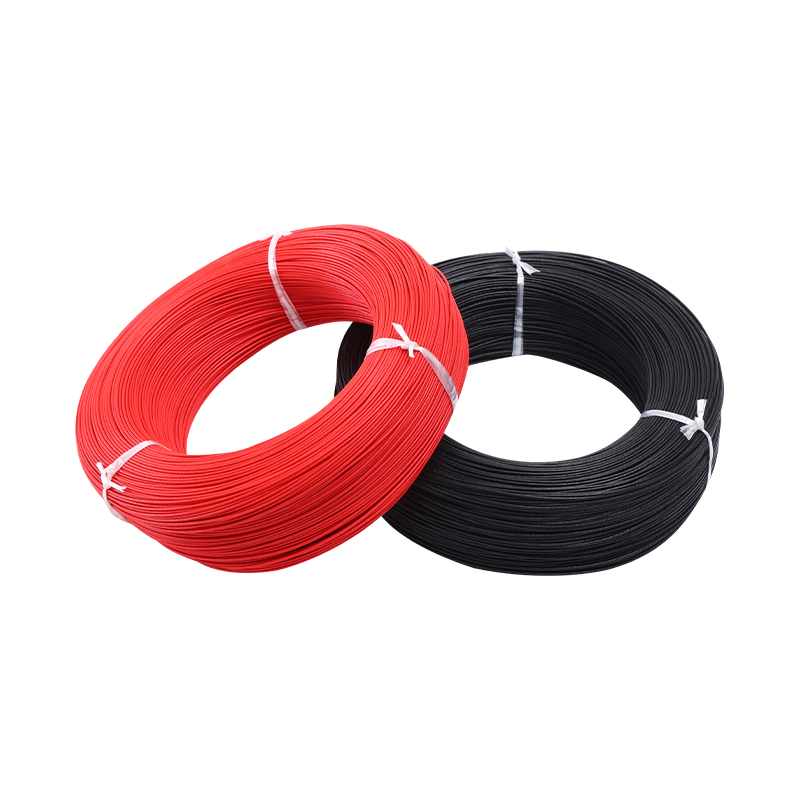

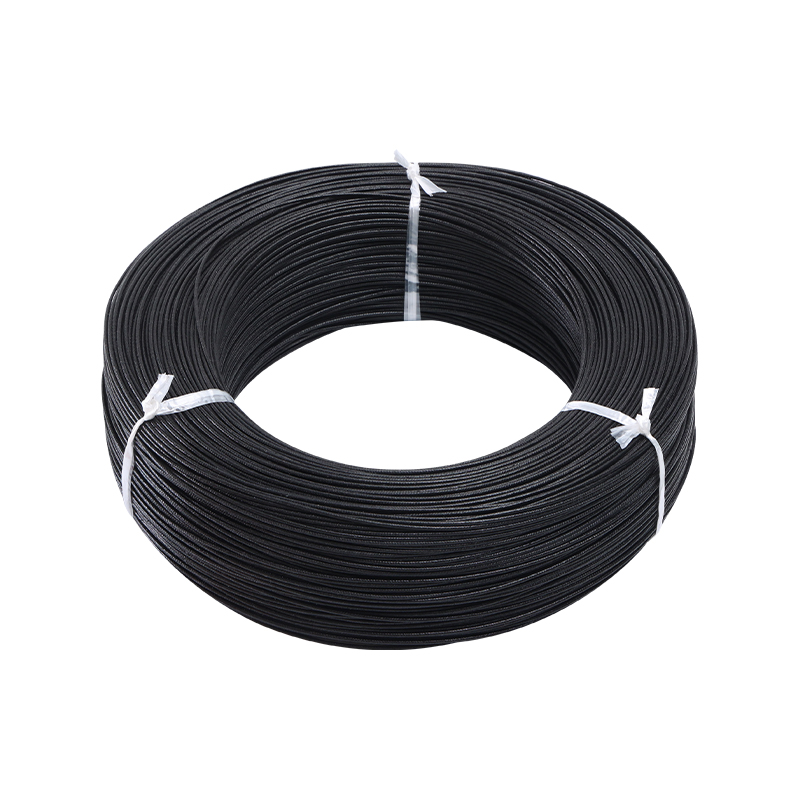

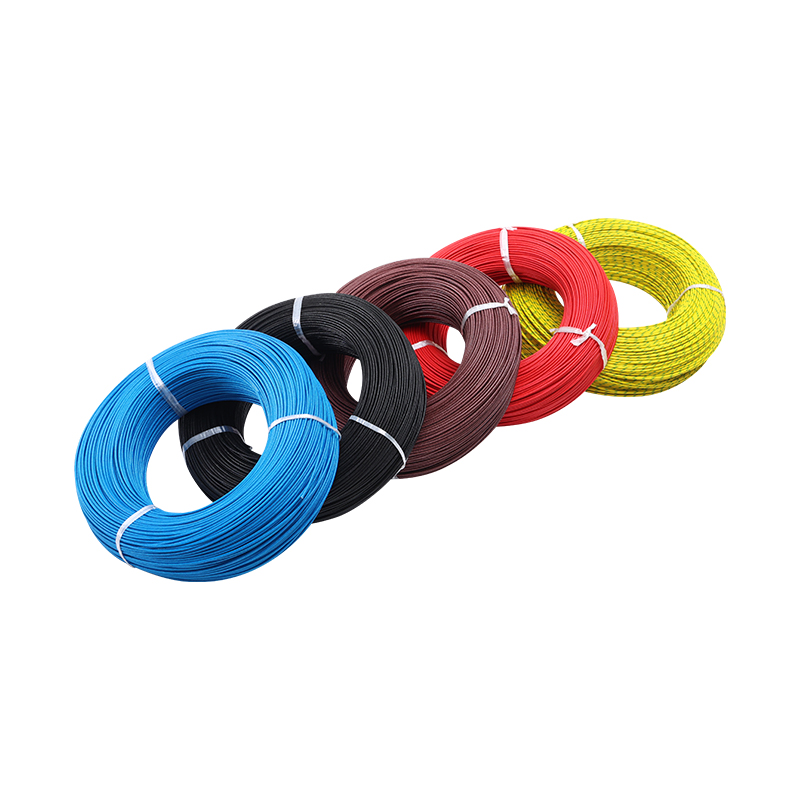

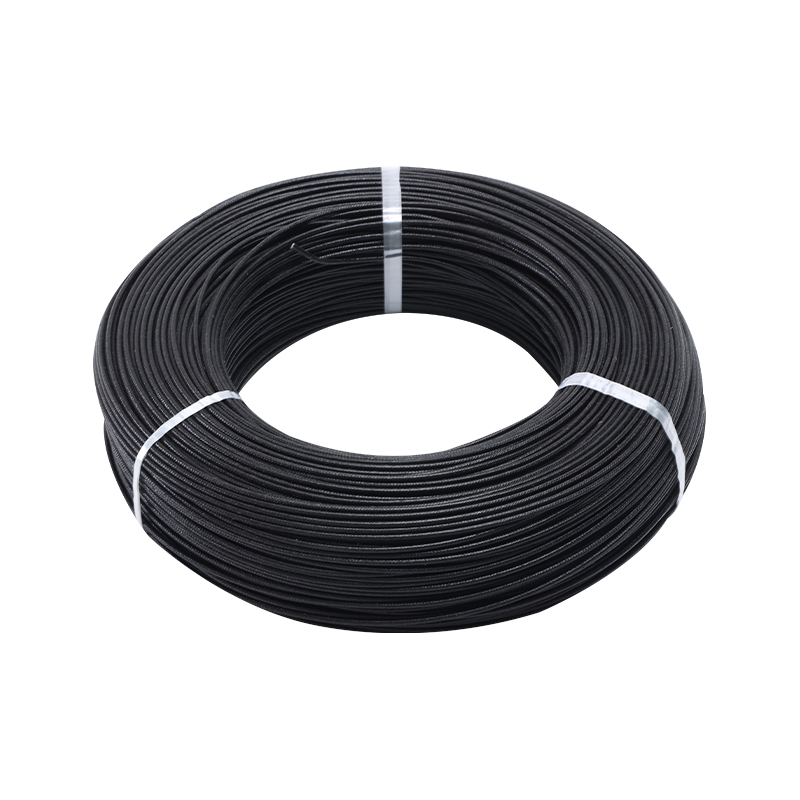

UL3144 Fiber Silicone vitreum

UL3144 Filum vitreum Fiber Silicone est premium electrica solutionis quae in asperis ambitibus excellere voluit. Aliquam 600V intentionem rating et 150°C resistentiae temperaturae, durabilitatem asperam cum flexibilitate ad applicationes postulandas componit. Robur vitrea fibra bracteis aucta eximias vires mechanicas efficit, resistens abrasioni, secat, et opprimendo vires, dum silicone efficiens praebet superiorem velit, chemicam resistentiam, ac stabilitatem scelestam. Hoc filum valde idoneum est calidis locis, ut electronica, instrumenta electrica, accendentia, et electricum calefactionem productorum, et optimam observantiam conservare potest sub perquam minimis conditionibus rigoris et securitatis, et UL flammae-retardantiae cum rigore et salute. sustentationem gratuita. Upgrade systemata tua cum UL3144-ubi fides innovatio occurrit. Contactus nos hodie ad discutiendum quomodo haec filum robustum potest tua incepta elevare!

Contact Us
PREV：UL3231 Vitrum Fibre tortis Silicone Maximum Temperature Repugnans WireDEINDE：UL3071/3074/3075 Cum tortis Silicone filum
Parameter
AWG
NO. 		Conductor Insulation Fibra vitri crassities
mm） 		Diameter filum Max
resistentia
20℃(Ω/KM)
Spec.
mm²） 		Structure
mm） 		Diameter
mm） 		Nominal
crassitudine
mm） 		Min
crassitudine
mm） 		Insulation
diametri
mm） 		Nominal
mm） 		tolerantia
mm）
26 0.128 7/0.16 0.48 1.14 1.03 2.76 0.2 3.2 ±0.20 148
8/0.15
25 0.162 9/0.16 0.56 1.14 1.03 2.84 0.2 3.25 ±0.20 116
24 0.205 7/0.20 0.6 1.14 1.03 2.88 0.2 3.3 ±0.20 93
11/0.16
23 0.259 11/0.18 0.7 1.14 1.03 2.98 0.2 3.4 ±0.20 74.5
22 0.324 7/0.254 0.75 1.14 1.03 3.03 0.2 3.45 ±0.20 55
13/0.18
21 0.412 17/0.18 0.88 1.14 1.03 3.16 0.2 3.6 ±0.20 46.9
20 0.51 21/0.18 0.96 1.14 1.03 3.24 0.2 3.65 ±0.20 34.6
10/0.254
7/0.32
19 0.653 26/0.18 1.1 1.14 1.03 3.38 0.2 3.8 ±0.20 29.1
18 0.823 33/0.18 1.2 1.14 1.03 3.48 0.2 3.9 ±0.30 23.2
7/0.39
16/0.254
17 1.04 21/0.254 1.38 1.14 1.03 3.66 0.2 4.1 ±0.30 20
40/0.18
32/0.20
16 1.31 7/0.49 1.55 1.14 1.03 3.83 0.2 4.25 ±0.30 14.6
26/0.254
52/0.18
15 1.65 33/0.254 1.75 1.14 1.03 4.03 0.2 4.45 ±0.30 11.3
14 2.08 41/0.254 1.95 1.14 1.03 4.23 0.2 4.65 ±0.30 8.96
7/0.62
64/0.20
13 2.63 51/0.254 2.19 1.14 1.03 4.47 0.2 4.9 ±0.30 7.1
12 3.31 65/0.254 2.5 1.14 1.03 4.78 0.2 5.2 ±0.30 5.64
42/0.32
Quaeso contactus elit ut providere productum specificationes.
