UL3231 Vitrum Fibre tortis Silicone Maximum Temperature Repugnans Wire Provisores, Officina

UL3231 Vitrum Fibre tortis Silicone Maximum Temperature Repugnans Wire

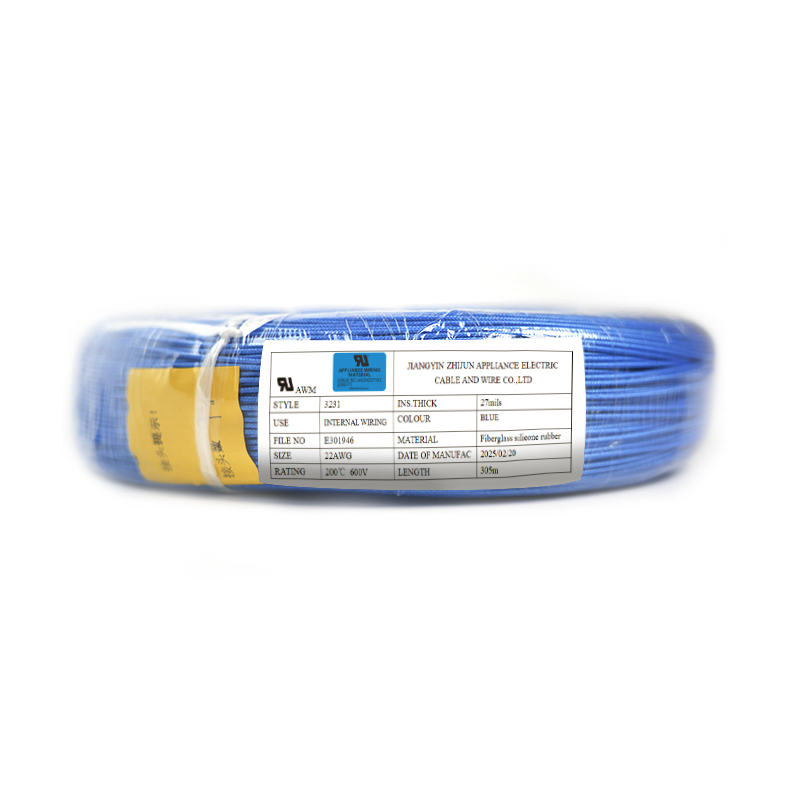

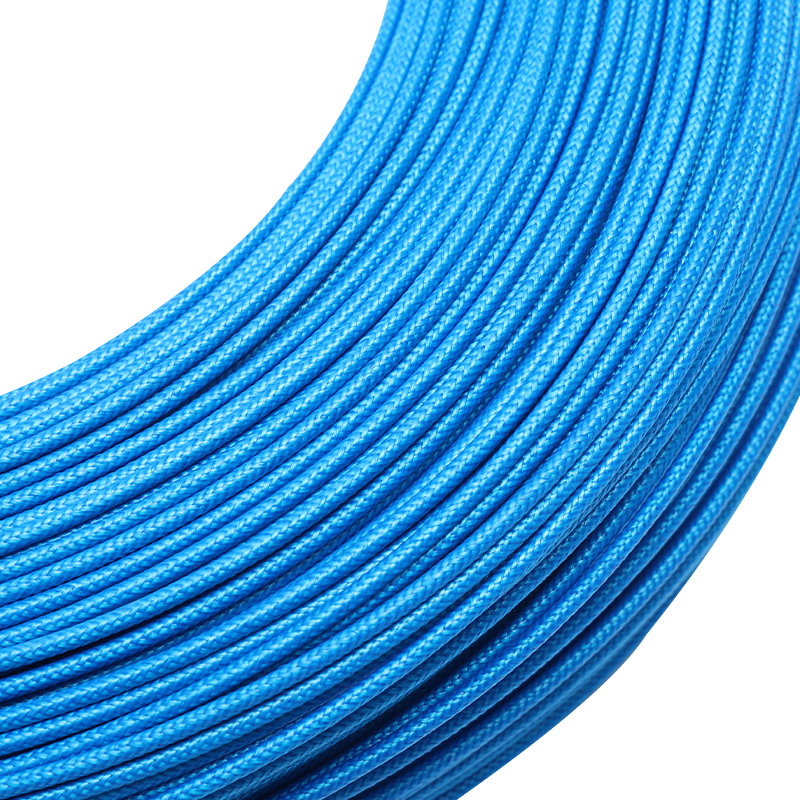

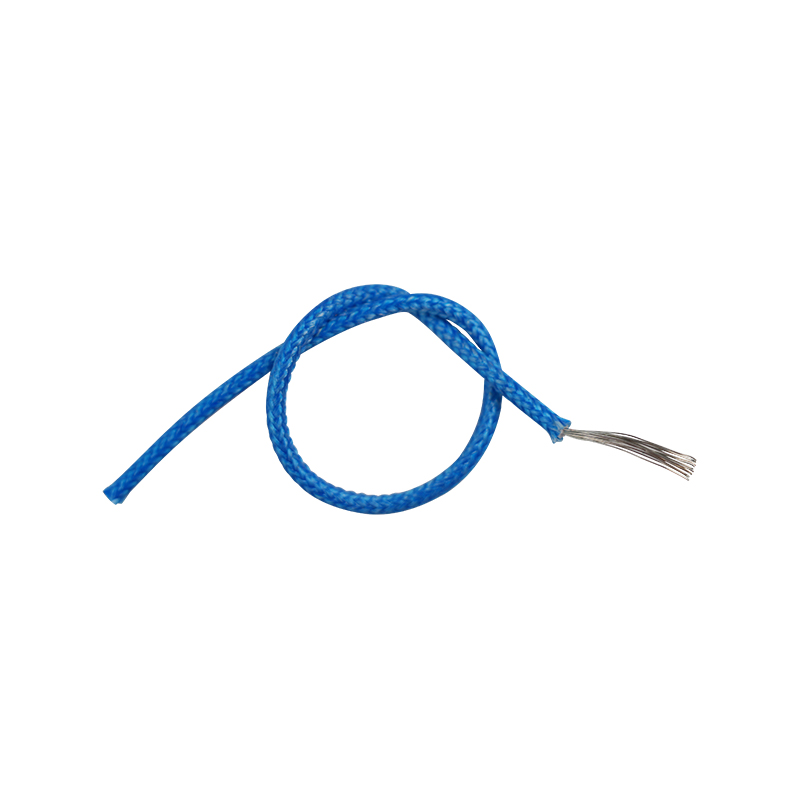

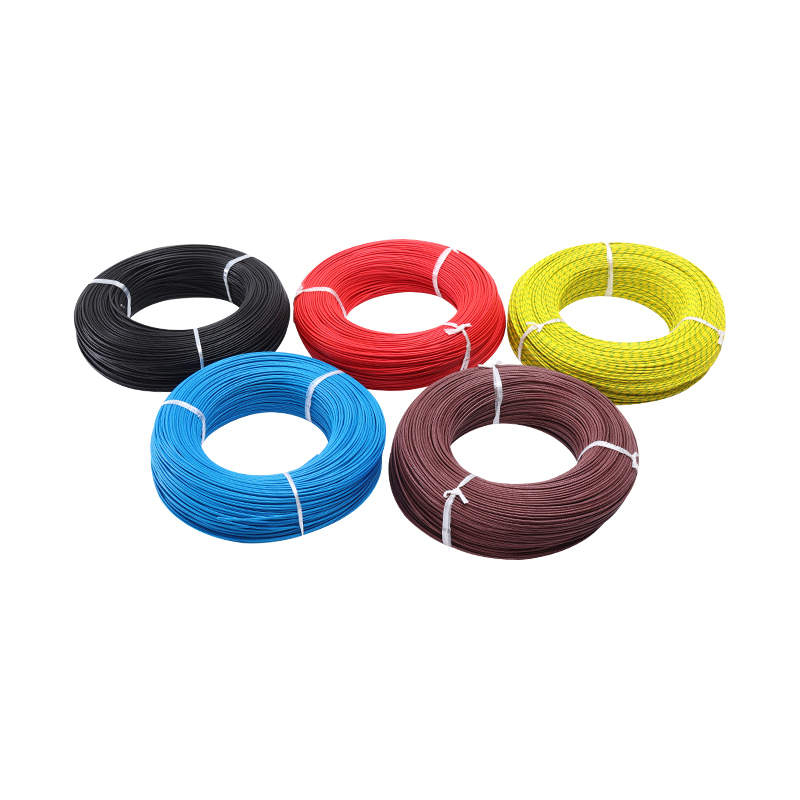

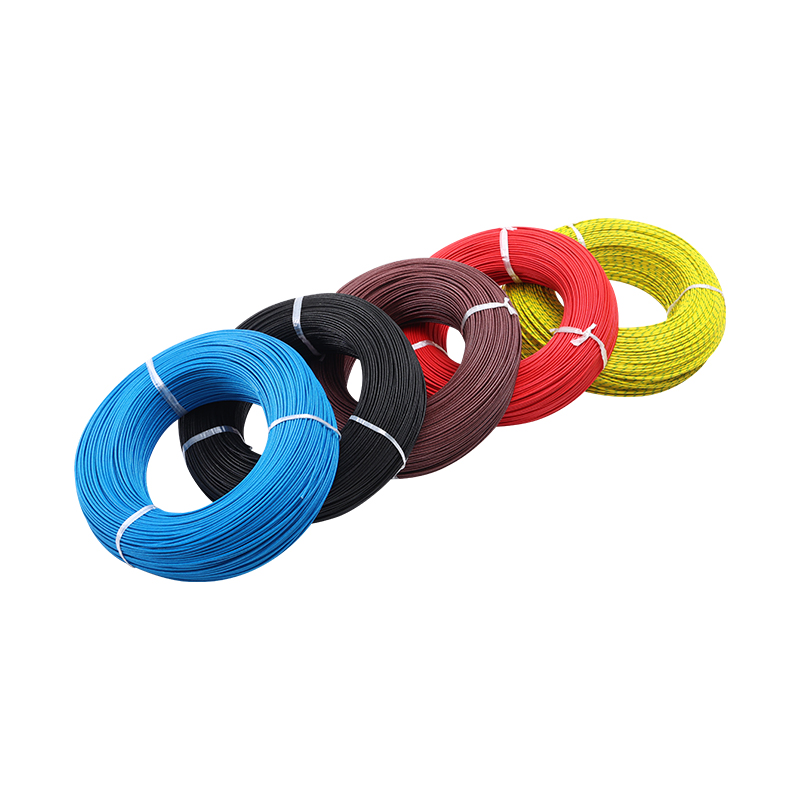

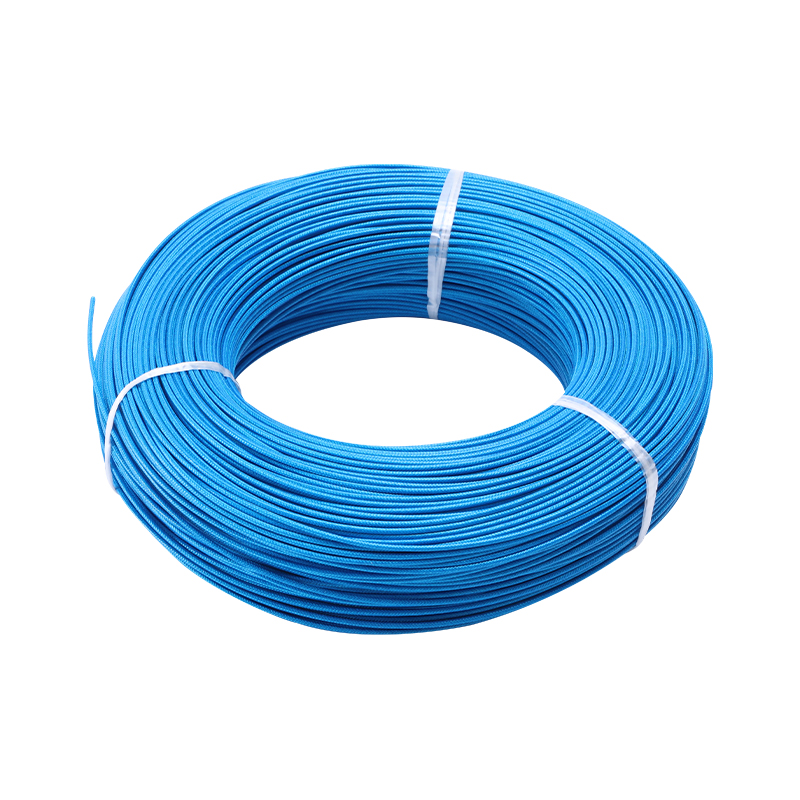

UL3231 Fibra vitrea silicone tortis obsistentis filum summae temperationis renitens coniungit durabilitatem asperam cum electricae eximia observantia, aptam faciens ad applicationes industriales exigendas. Facere aestimationem 600V intentionis et resistentiae ad temperaturas extremas (CL°C / 200°C), haec filum silicone-insulatum certam operationem in ambitus asperis, a clibanis industrialibus ad graves machinas efficit. Fibra vitrea bracteis addit superiorem tutelam mechanicam et scelerisque stabilitatem, dum iacca siliconis flexibilis resistit abrasioni, chemicae, et humori. Valet cum bene conductor versatile - nudum chalybem, palinatum, argenteum vel patella aeris — diversis necessitatibus aptat, praebens corrosionem resistentiae et optimae conductivity. UL 3231 elige condiciones calefactas, inaequales, vitreas, bracteas, vel bracteas aeris — diversis necessitatibus aptat, praebens corrosionem resistentiae et optimae conductivity. ubi alii deficient.

Quomodo eligis High-Quality PVC Insulated Fila tuta et cer...
06 Aug, 2026
PVC insulatas filis fundamentales partes repraesentant in institutionibus electricis in toto orbe, praebens certissimum praesidium conductorem et salutem electricam per applicationes resident...
READ MORE
How Do You Choose the Right insulated Wire for Your Electr...
31 Jul, 2026
Quid est insulatus filum et cur Insulation Materia? Filum insulatum constat ex conductore metallico, aeris vel aluminio typice circumdato, materia non conductiva quae electricam venam impe...
READ MORE
Quae pars tenet Wiring Harness Ludere in hospitii Applianc...
23 Jul, 2026
Domus adjumenta wiring loricarum unum ex gravissimis criticis adhuc saepe neglectis componentibus in moderna domo adjumenta, inserviens systemati nervosi quod vim electricam et signa per univ...
READ MORE
Quae sunt diversa genera insularum filum et quod unum apta...
17 Jul, 2026
Quid est filum insulatum? Filum insulatum conductor est, typice aeris vel aluminii, quod materia non conductiva obducitur ne electricae venae iter intentum effugiant. Haec iacuit insulating cont...
READ MORE

AWG NO.	Conductor			Insulation			Fibra vitri crassities mm）	Diameter filum		Max resistentia 20℃(Ω/KM)
AWG NO.	Spec. mm²）	Structure mm）	Diameter mm）	Nominal crassitudine mm）	Min crassitudine mm）	Insulation diametri mm）	Fibra vitri crassities mm）	Nominal mm）	tolerantia mm）	Max resistentia 20℃(Ω/KM)
26	0.128	7/0.16	0.48	0.76	0.69	2	0.2	2.4	±0.15	148
26	0.128	8/0.15	0.48	0.76	0.69	2	0.2	2.4	±0.15	148
25	0.162	9/0.16	0.56	0.76	0.69	2.1	0.2	2.5	±0.15	116
24	0.205	7/0.20	0.6	0.76	0.69	2.15	0.2	2.55	±0.15	93
24	0.205	11/0.16	0.6	0.76	0.69	2.15	0.2	2.55	±0.15	93
23	0.259	11/0.18	0.7	0.76	0.69	2.25	0.2	2.65	±0.15	74.5
22	0.324	7/0.254	0.75	0.76	0.69	2.3	0.2	2.7	±0.20	55
22	0.324	13/0.18	0.75	0.76	0.69	2.3	0.2	2.7	±0.20	55
21	0.412	13/0.18	0.88	0.76	0.69	2.4	0.2	2.8	±0.20	46.9
20	0.519	21/0.18	0.96	0.76	0.69	2.5	0.2	0.9	±0.20	34.6
		10/0.254
		7/0.32
19	0.653	26/0.18	1.1	0.76	0.69	2.65	0.2	3.05	±0.20	29.1
18	0.823	33/0.18	1.2	0.76	0.69	2.75	0.2	3.15	±0.30	23.2
		7/0.39
		16/0.254
17	1.04	21/0.26	1.38	0.76	0.69	2.9	0.2	3.3	±0.30	20
		40/0.18
		32/0.20
16	1.31	7/0.49	1.55	0.76	0.69	3.1	0.2	3.5	±0.30	14.6
		26/0.254
		52/0.18
15	1.65	33/0.254	1.75	0.76	0.69	3.3	0.2	3.7	±0.30	11.3
14	2.08	41/0.254	1.95	0.76	0.69	3.5	0.2	3.9	±0.30	8.96
		7/0.62
		64/0.20
13	2.63	51/0.254	2.15	0.76	0.69	3.7	0.2	4.1	±0.40	7.1
12	3.31	65/0.24	2.5	0.76	0.69	4.05	0.2	4.45	±0.40	5.64
12	3.31	42/0.32	2.5	0.76	0.69	4.05	0.2	4.45	±0.40	5.64
11	4.17	83/0.254	2.74	0.76	0.69	4.3	0.2	4.7	±0.40	4.48
11	4.17	34/0.40	2.74	0.76	0.69	4.3	0.2	4.7	±0.40	4.48
10	5.261	35/0.45	3.2	1.14	1.03	5.5	0.2	5.9	±0.40	3.55
9	6.631	53/0.40	3.98	1.14	1.03	6.5	0.2	6.7	±0.40	2.81
8	8.367	70/0.40	4.4	1.52	1.37	7.45	0.25	7.95	±0.40	1.79
7	10.55	84/0.40	4.6	1.52	1.37	7.65	0.25	8.15	±0.40	1.72
6	13.3	105/0.40	5.3	1.52	1.37	8.35	0.25	8.85	±0.40	1.42
5	16.77	133/0.40	6.1	1.52	1.37	9.05	0.3	9.65	±0.40	0.89
4	21.15	168/0.40	6.8	1.52	1.37	9.85	0.3	10.45	±0.40	0.707
3	26.67	210/0.40	7.1	1.52	1.37	10.05	0.3	10.65	±0.40	0.56
2	33.62	216/0.40	8.5	1.52	1.37	11.55	0.3	12.15	±0.40	0.469
1	43.41	217/0.50	9.6	2.03	1.83	13.7	0.55	14.8	±0.50	0.435
1/0	45.49	276/0.50	11.2	2.03	1.83	15.3	0.55	16.4	±0.50	0.355
2/0	67.43	342/0.50	12.2	2.03	1.83	16.3	0.55	17.4	±0.50	0.282
3/0	85.01	437/0.50	13.8	2.03	1.83	17.9	0.55	19	±0.50	0.223
4/0	107.2	551/0.50	15.5	2.03	1.83	19.6	0.65	20.9	±0.50	0.177
250kcmil	127	646/0.50	12.4	2.41	2.17	22.35	0.65	23.65	±0.80	0.151
300kcmil	152	779/0.50	19.5	2.41	2.17	24.35	0.65	25.65	±0.80	0.125
350kcmil	177	912/0.50	21.4	2.41	2.17	25.85	0.65	27.15	±0.80	0.108
400kcmil	203	1036/0.50	23.4	2.41	2.17	27.85	0.65	29.15	±0.80	0.0942
Quaeso contactus elit ut providere productum determinationes.
